MH361T
TSC

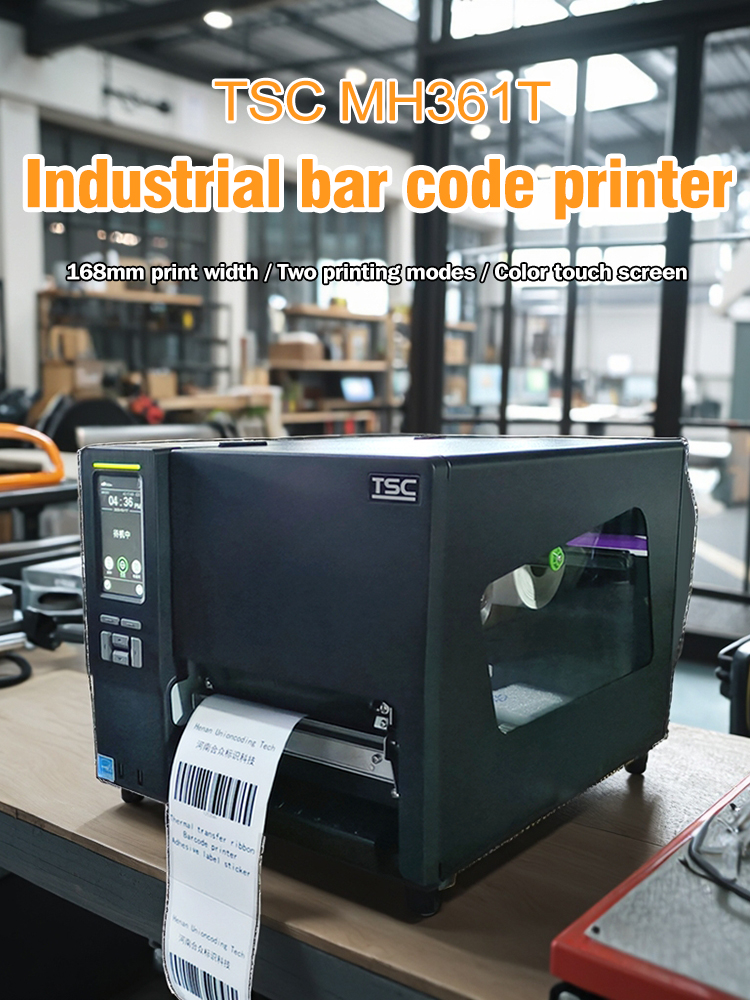

TSC-MH361T Industrial label printer
The MH361T uses collapsible metal side covers to directly reduce the operating space required by 24%. Its all-metal printing mechanism design can maintain the durability of the printer even if the printing volume is large. The MH361T series guarantees high quality output when printing special labels, such as harder and thicker clothing tags, and offers a wide range of optional accessories to support different application requirements. These accessories include a paperless kit, a paperback stripper kit, an internal full-roll recovery kit and a cutter, with different accessories to increase the printer's functionality and flexibility to meet a variety of use situations.
| Model number | MH261T | MH361T |
| Resolution | 8 points/mm (203dpi) | 12 points/mm (300dpi) |
| Print mode | Thermal and thermal rotary | |
| Maximum print speed | 305 mm (12")/ S | 254 mm (10")/ S |
| Maximum print width | 168mm (6.81 ") | |
| Maximum print length | 6604mm (260 ") | 6604mm (260 ") |
| chassis | Aluminum alloy cast printing mechanism module/metal housing with large transparent window design | |
| Volume dimension | 357 mm (W) x 313 mm (H) x 514 mm (D) 14.05” (W) x 12.32 (H) x 20.24” (D) | |
| weight | 17.8 kg (39.24 lbs) | |
| Maximum size of internal roll | 208.3 mm (8.2”) O.D. | |
| Carbon band | 208.3 mm (8.2”) O.D. | |
| Internal | • RS-232 • Parallel • USB 2.0 (High speed mode) • Internal Ethernet, 10/100 Mbps • USB host *2 (Front side), for scanner or PC keyboard • GPIO (DB15F) (dealer option) • Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) | |
| memory | • 512MB Flash memory • 256MB SDRAM • microSD Flash memory card reader for Flash memory expansion, up to 32 GB | |

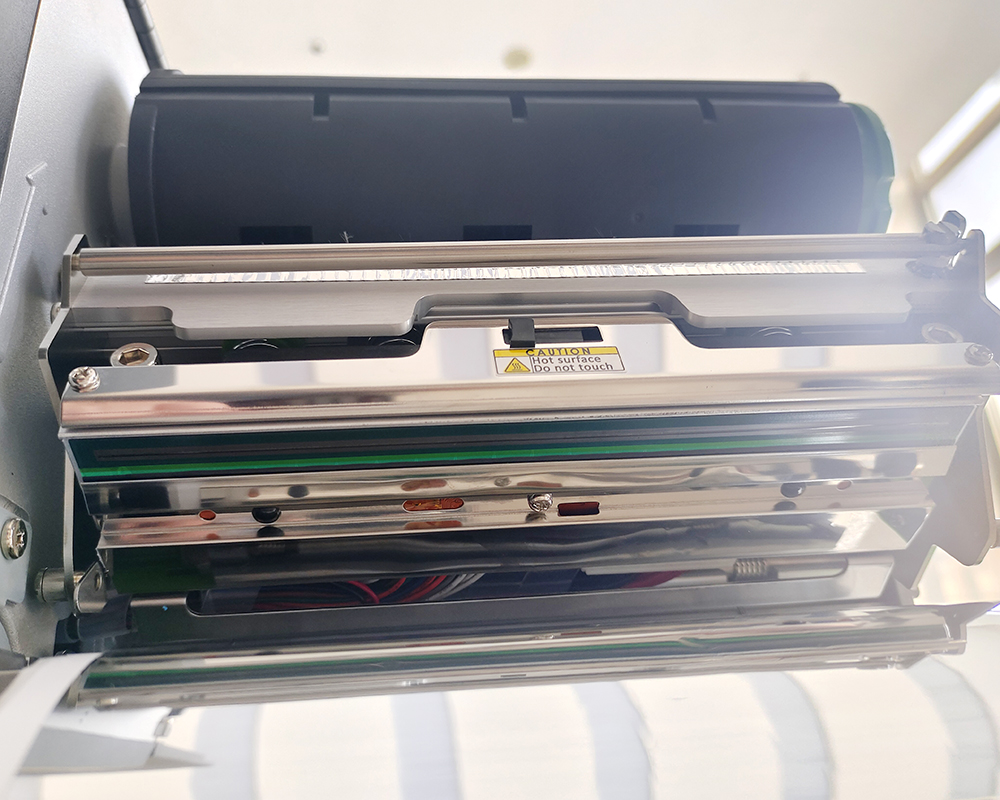

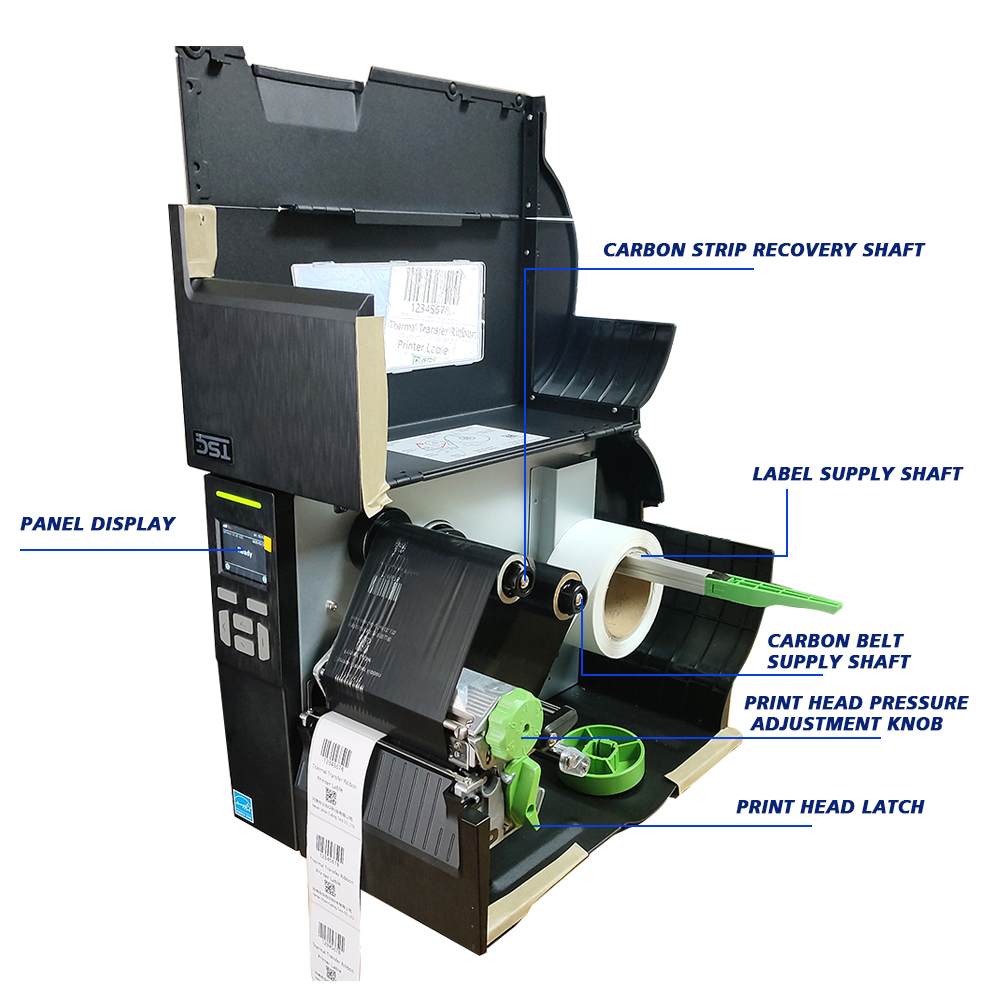

168MM Industrial type print head

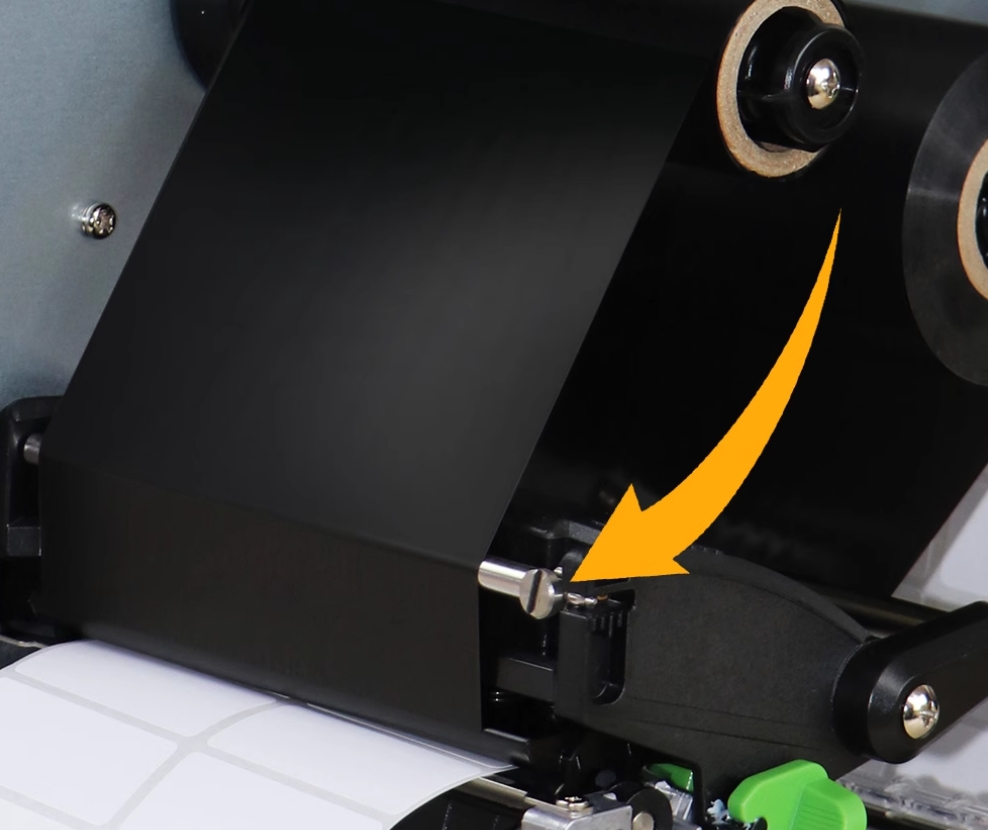

Carbon tape adjusting rod

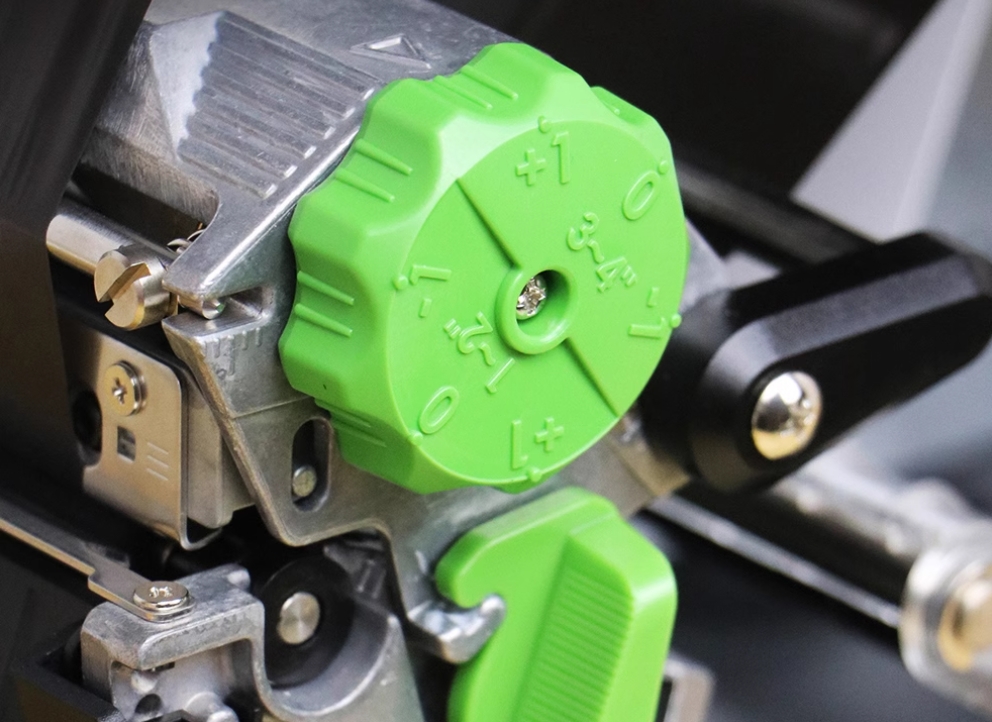

Pressure adjusting button
TSC-MH361T Industrial label printer
The MH361T uses collapsible metal side covers to directly reduce the operating space required by 24%. Its all-metal printing mechanism design can maintain the durability of the printer even if the printing volume is large. The MH361T series guarantees high quality output when printing special labels, such as harder and thicker clothing tags, and offers a wide range of optional accessories to support different application requirements. These accessories include a paperless kit, a paperback stripper kit, an internal full-roll recovery kit and a cutter, with different accessories to increase the printer's functionality and flexibility to meet a variety of use situations.
| Model number | MH261T | MH361T |
| Resolution | 8 points/mm (203dpi) | 12 points/mm (300dpi) |
| Print mode | Thermal and thermal rotary | |
| Maximum print speed | 305 mm (12")/ S | 254 mm (10")/ S |
| Maximum print width | 168mm (6.81 ") | |
| Maximum print length | 6604mm (260 ") | 6604mm (260 ") |
| chassis | Aluminum alloy cast printing mechanism module/metal housing with large transparent window design | |
| Volume dimension | 357 mm (W) x 313 mm (H) x 514 mm (D) 14.05” (W) x 12.32 (H) x 20.24” (D) | |
| weight | 17.8 kg (39.24 lbs) | |
| Maximum size of internal roll | 208.3 mm (8.2”) O.D. | |
| Carbon band | 208.3 mm (8.2”) O.D. | |
| Internal | • RS-232 • Parallel • USB 2.0 (High speed mode) • Internal Ethernet, 10/100 Mbps • USB host *2 (Front side), for scanner or PC keyboard • GPIO (DB15F) (dealer option) • Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) | |
| memory | • 512MB Flash memory • 256MB SDRAM • microSD Flash memory card reader for Flash memory expansion, up to 32 GB | |
168MM Industrial type print head
Carbon tape adjusting rod
Pressure adjusting button
