MF3410
TSC

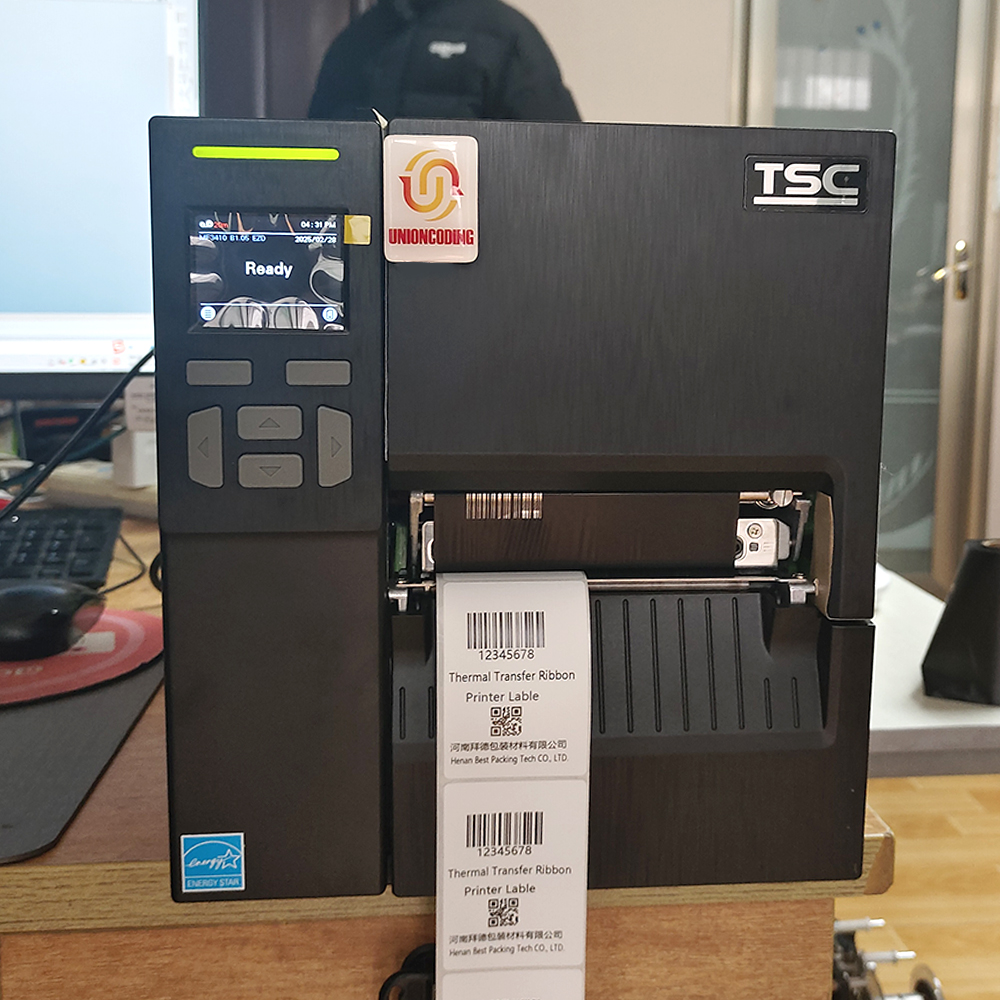

TSC-MF3410 Industrial label printer Strong, save operating space, suitable for high print volume and multiple applications

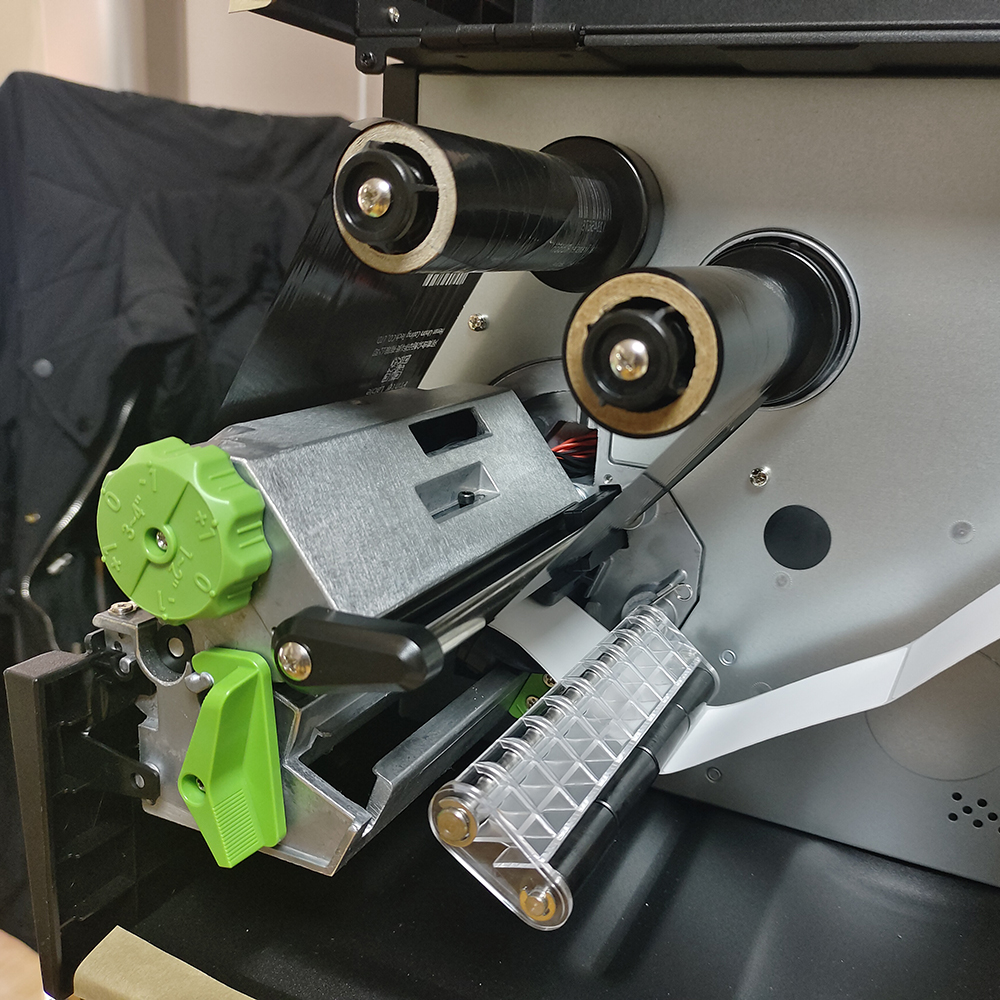

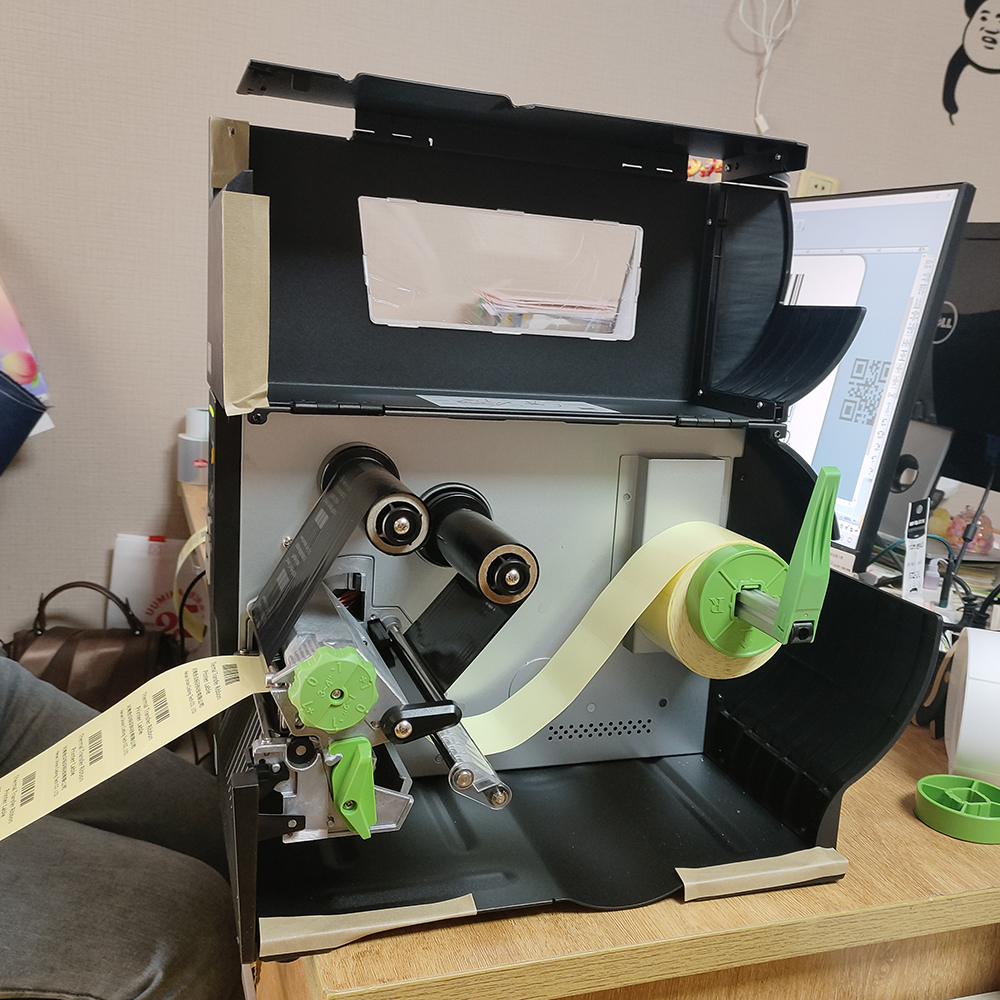

The MF3410 uses collapsible metal side covers to directly reduce the operating space required by 24%. Its all-metal printing mechanism design can maintain the durability of the printer even if the printing volume is large. The MF3410 series guarantees high quality output when printing special labels, such as harder and thicker clothing tags, and offers a wide range of optional accessories to support different application requirements. These accessories include a paperless kit, a paperback stripper kit, an internal full-roll recovery kit and a cutter, with different accessories to increase the printer's functionality and flexibility to meet a variety of use situations.
Model number | MF2410 | MF3410 | MF2410T | MF3410T |
Resolution | 8 points/mm (203dpi) | 12 points/mm (300 dpi) | 8 points/mm (203dpi) | 12 points/mm (300 dpi) |
Print mode | Thermal and thermal rotary | |||
Maximum print speed | 304 mm (12")/ S | 228.6 mm (9")/ S | 304 mm (12")/ S | 228.6 mm (9")/ S |
Maximum print width | 107 mm (4.21 ") | 105.7 mm (4.16 ") | 107 mm (4.21 ") | 105.7 mm (4.16 ") |
Maximum print length | 25,400 mm (1000 ") | 11,430 mm (450 ") | 25,400 mm (1000 ") | 11,430 mm (450 ") |
chassis | Aluminum alloy cast printing mechanism module/metal housing with large transparent window design | |||
Volume dimension | 248 mm (W)x274 mm (H)x436 mm (L) | |||
weight | 9.1 kg (20.06 lb) | |||
Carbon ribbon | 40 mm - 110 mm (1.6" - 4.3") | |||
Internal memory | 32-bit RISC CPU central processing unit | |||
Paper type | Continuous paper, spaced paper, black mark paper, fanfold paper, perforated paper (outer roll) | |||
Paper width | 20mm-120 mm(0.8"-4.7") | |||
Bar code | • One-dimensional bar code Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, Ean-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, Stacked by PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post • QR barcode Pdf-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSS |
Carton sticker
Equipment manufacturing industry
Daily chemical industry
