HP241 automatic date Coding machine
unioncoding

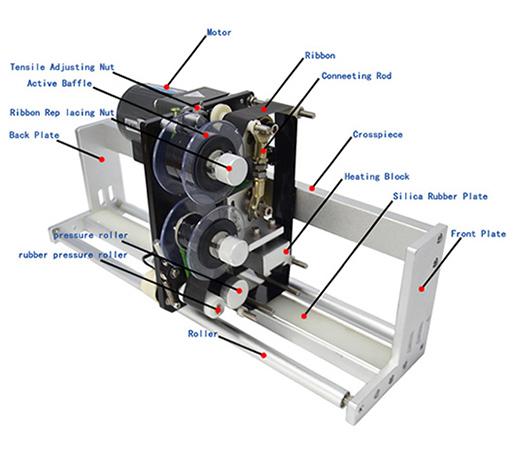

HP 2 4 1
Pilow coding foil machine
It is used on intermittent or continuous
type packaging machinery to print production
date .weight . batch number , such as particle
packing machine . paper towel packaging machine ,
labeling machine .

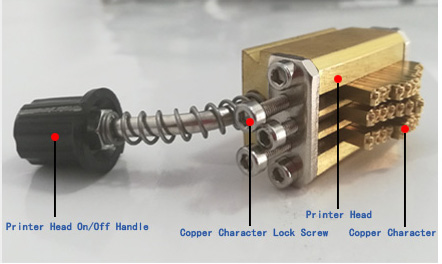

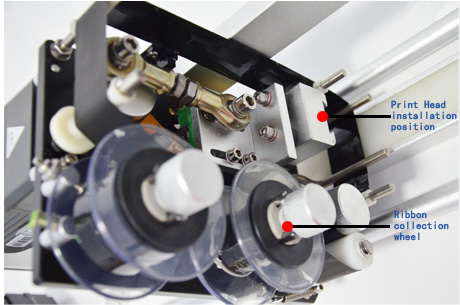

How to adjust the resistance of ribbon feeding
Slightly push inwards printer head on / offhandle . at
the same time , turn it by 9 0 " - 1 8 0 . Undo hook head
and pull out printer head , and unscrew the cooper
character locknut on pr inter head to replace types .
The types should be arranged at thesame height without .
Never use a metal rod to Knock the types . as it may
damage them . ( As indicated in the diagram)

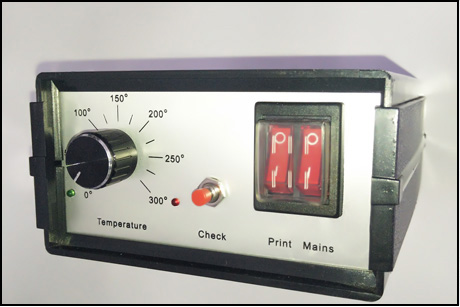

Description of Control System
1 Temperature control knob : turn clockwise to speedup heat
ing , and counterclockwise to slow down
2 . Check switch : in case that coding machine fails to work
when other lines are properly connected , and machine runs
when pressing ' Check ' switchuit can be sure that machine
is under good condition , it is only because signal line is
damaged or there is no signal input .
3 . Power switch : upward to turn on power supply . thenpower
indicator lamp lightens ( red ) .
4 . Print switch : upward to turn on , indicator lamp will
lighten ( green ) synchronously with the input speed of
signal to effect printing .

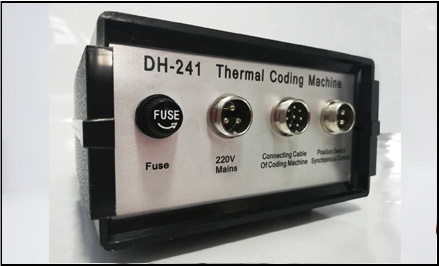

5 . Connecting cable : power supply cannot be switched
in until connecting cables have all been conneeted when
power supply is switched off , plus , use only three - hole
socket with earth wire that is reliably earthed .
| Driver | Motor |
| Voltage | 220V/50Hz |
| Power | 150W |
| Print speed | 0-150 Times/min |
| Font size | 2mm*4mm*15mm (can be custom-made) |
| Consumable | Ribbon |
| Weight | 8kg |
| Dimension (L*W*H) | 400mm*210mm*250mm |
Coding machine is to print production date, weight, batch number in the plastic bags and paper bags for Food, Medicine and other industries for marks.
It is suitable for all kinds of vertical intermittent or continuous packing machinery such as grain packing machines, VFFS packing machine, paper towel packing machines and labeling machine etc.
Features:
1. Adopts hot printing ribbons to print clear, easy drying, non- tacky and indelible characters.
2. Adopts SCM technology, temperature rising fast and stably, the temperature and print position easy to adjust.
3. The print speed synchronous with packing speed, the coding results accurate and efficient.
Packaging & Shipping
One carton= one set
Plastic foam protection machine.
