Solid ink coding machine

Our Friction Ink roll coder mainly used on Continuous type Packing/ Labeling/ Filling machine to print date and batch number.
This machine use Ink roller to print, it can print 1-6 lines .
We can customize Bracket length according to your need.
Usual Bracket length are: 400mm, 450mm , 500mm , 550mm, 600mm
Usual Ink roller sizes are 36mm*32mm, 36mm*36mm, 36mm*40mm.

Please click the button below to receive the free consumable samples

Availability:



Inquire

Model:
HZ100
Brand:
Unioncoding

Product Description

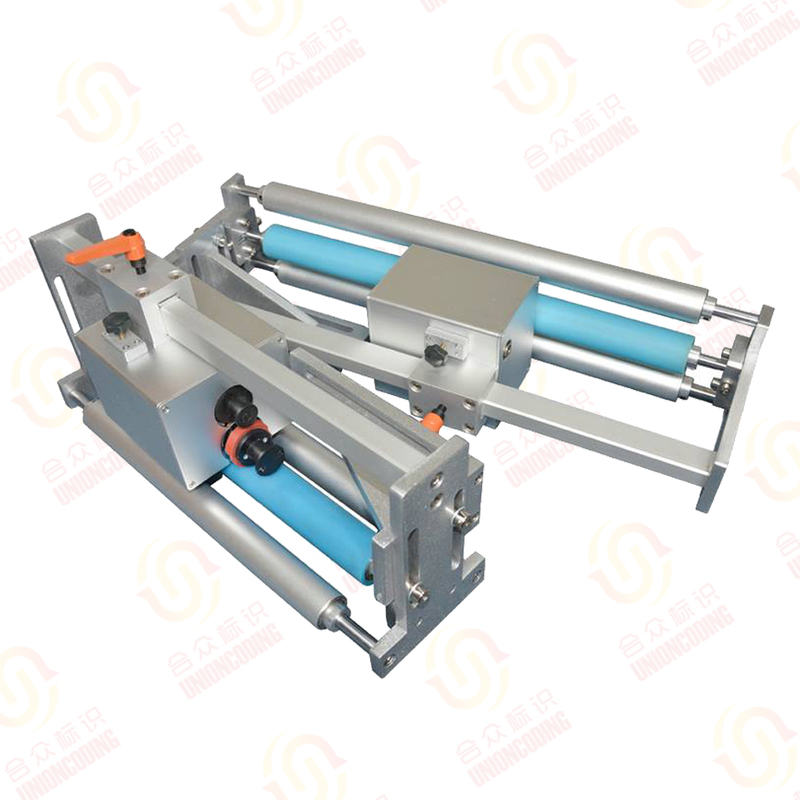

High Printing Speed HZ100 Friction Continous Dry Ink Coding Machine

Product Description

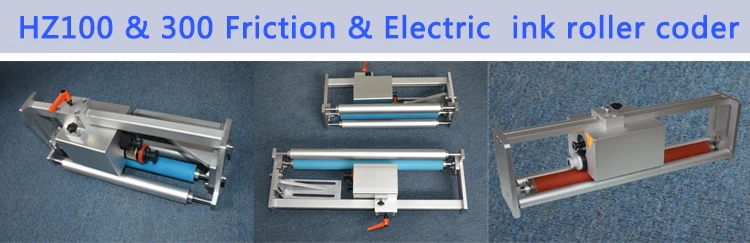

HZ100/300 Electric and Friction ink roller coding machine

Model	HZ100 Friction ink roller coding machine
Printing speed	≤300 Times/Minute
Print Area	≥38mm / ≥75mm
Electrical	AC220V±10V,50/60 Hz
Weight	Print Head: 2.0kg Control Box: 1.0kg
Printing Lines	T-type R-type
Ink roller size	Φ3632mm / Φ3640mm
Power	130W
High Printing Speed HZ100 Friction Continous Dry Ink Coding Machine

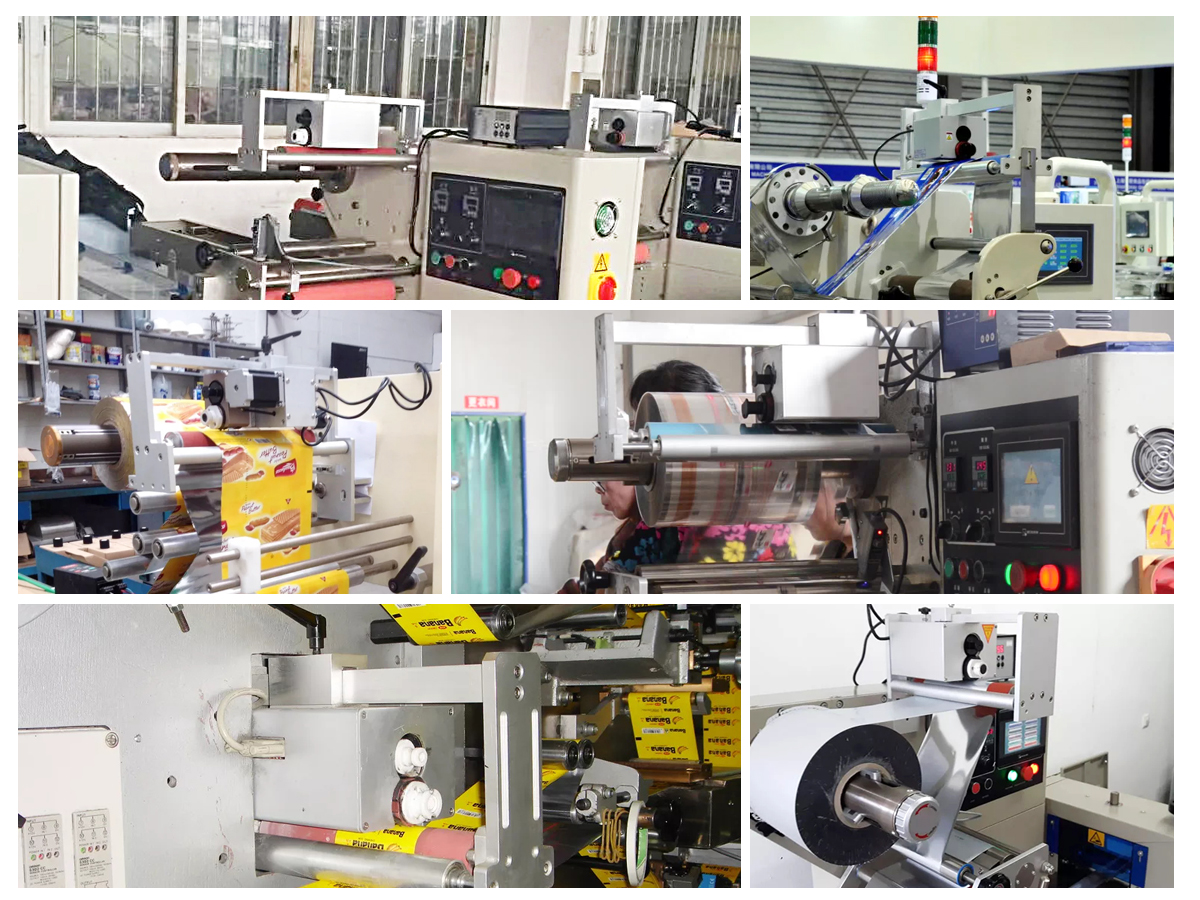

摩擦式打码机用途

Model	HZ300 Electric ink roller coding machine
Printing speed	≤600 Times/Minute
Print Area	≥38mm
Electrical	AC100V—AC230 V,50/60 Hz
Weight	Print Head: 4.0kg Control Box: 2.0kg
Printing Lines	T-type
Ink roller size	Φ3632mm / Φ3640mm
Power	140W
