9550
videojet

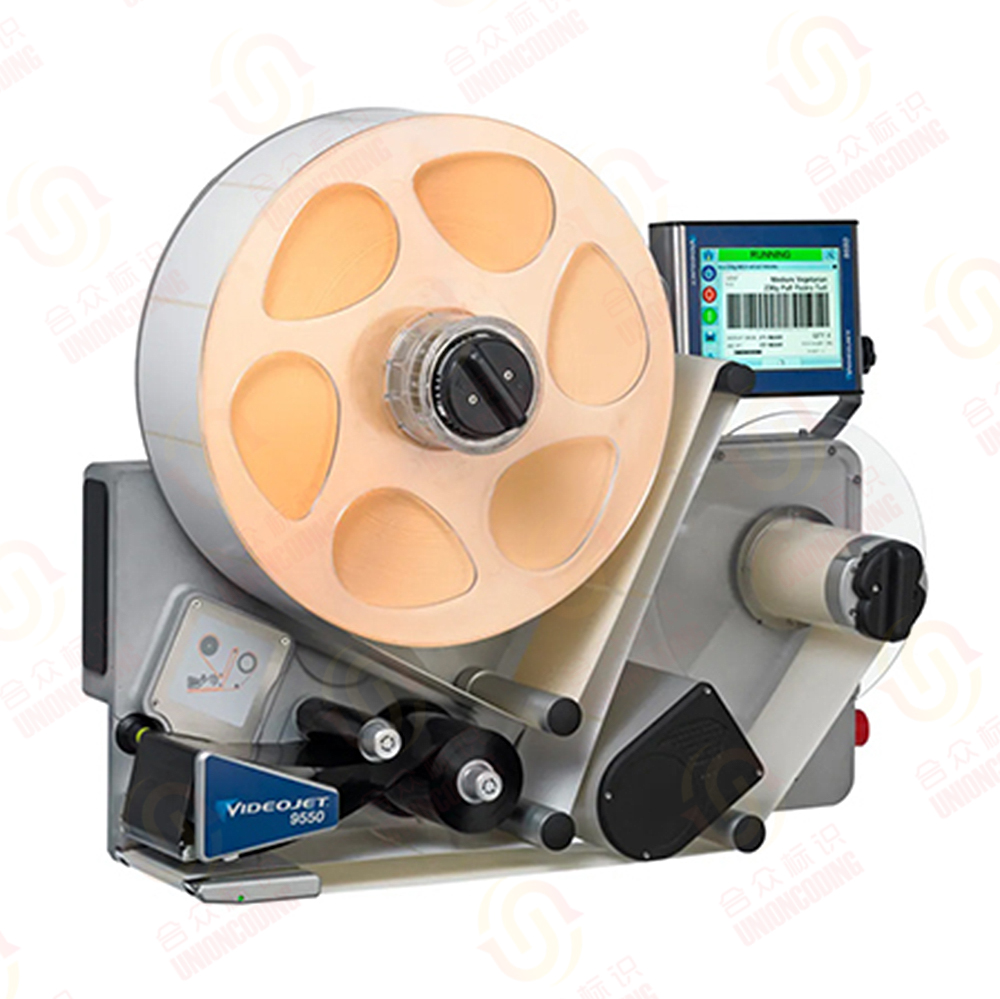

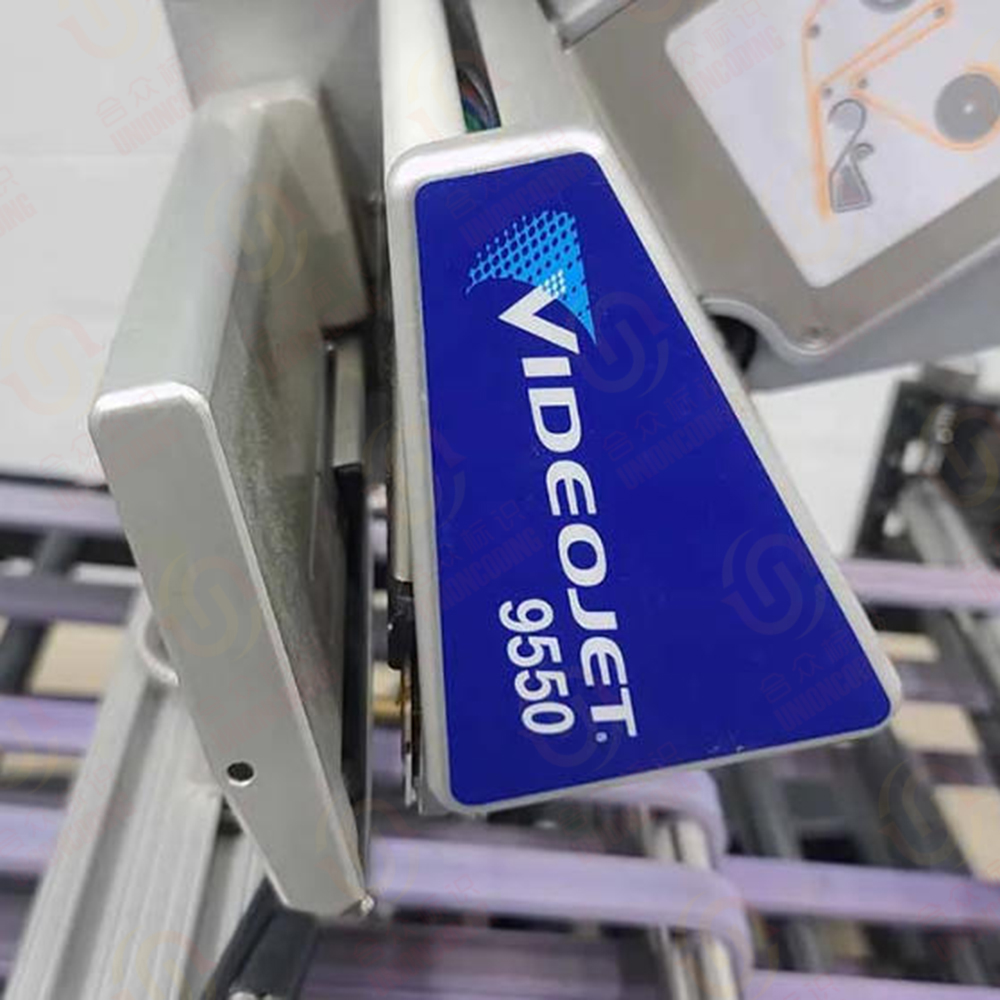

The 9550 Label Printing Machine with Intelligent MotionTM is a smarter print and apply labeler that targets zero unscheduled downtime and reduces costs and errors in case coding operations. Automatic, precise control of the entire system together with Direct Apply label placement, provides the most efficient and reliable industrial labeling machine.

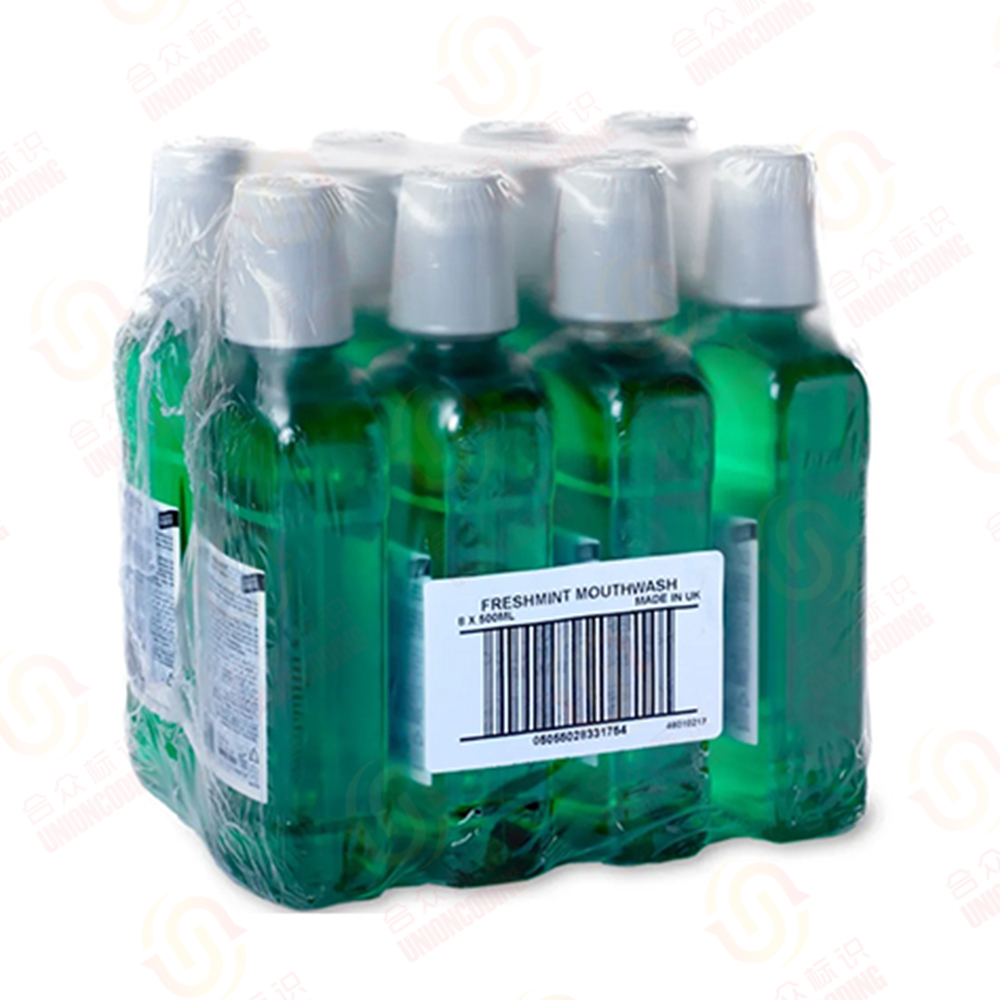

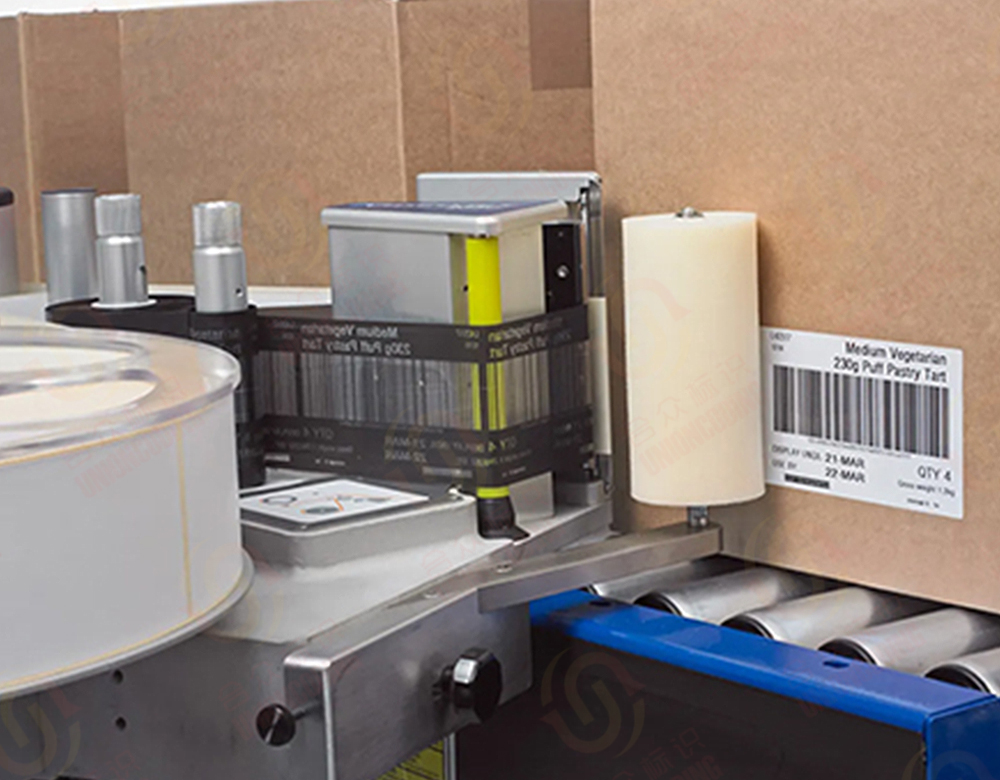

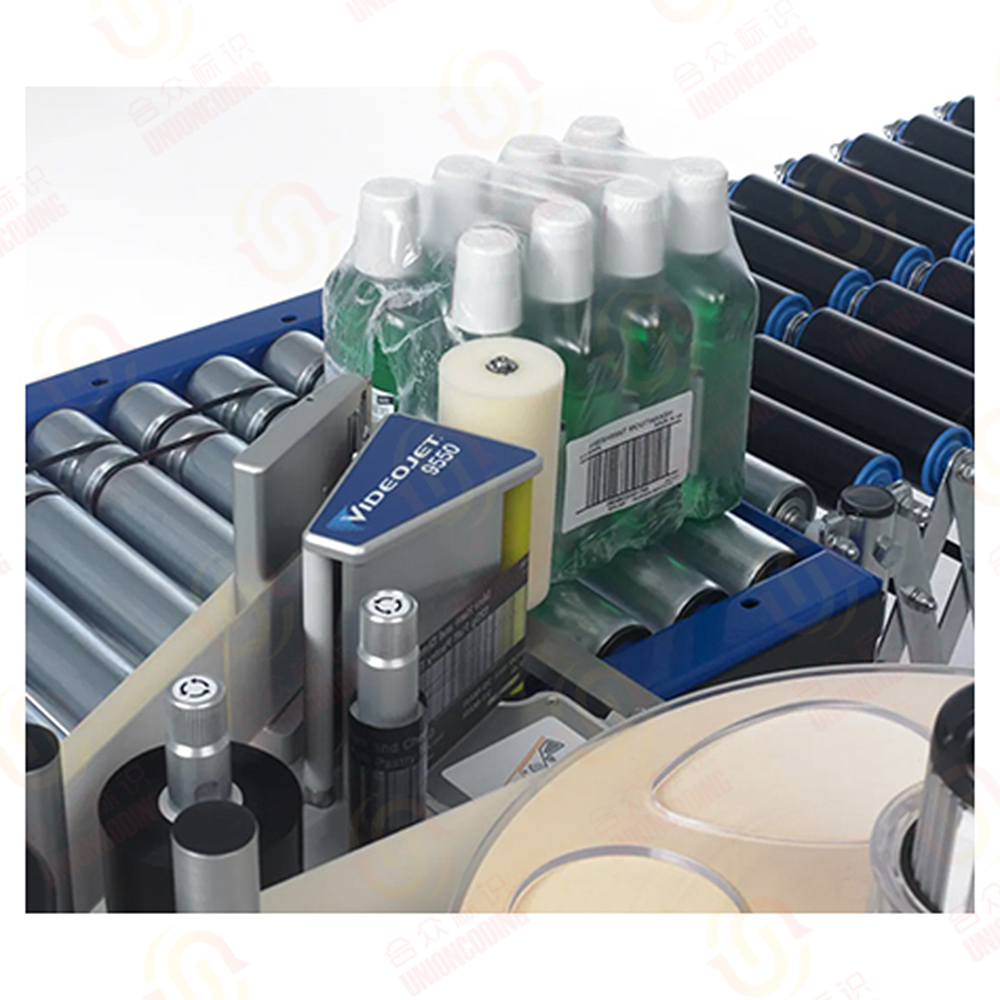

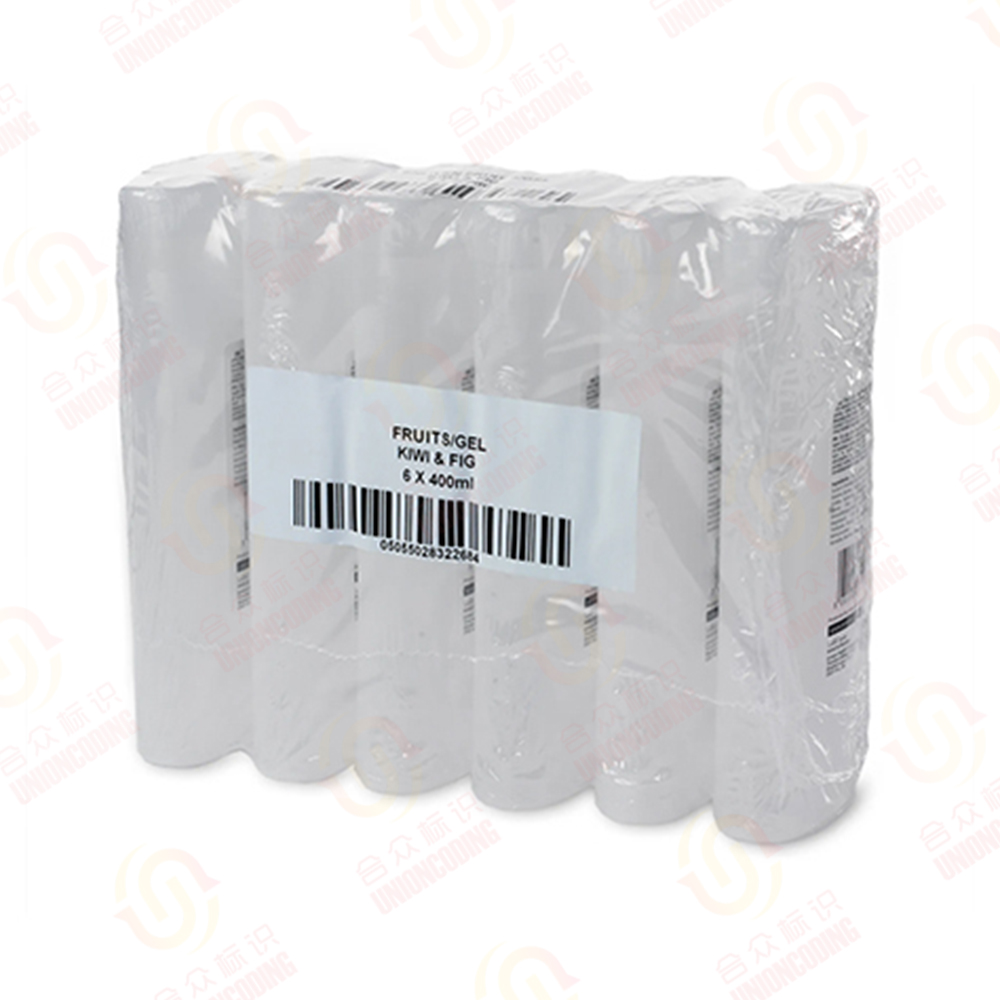

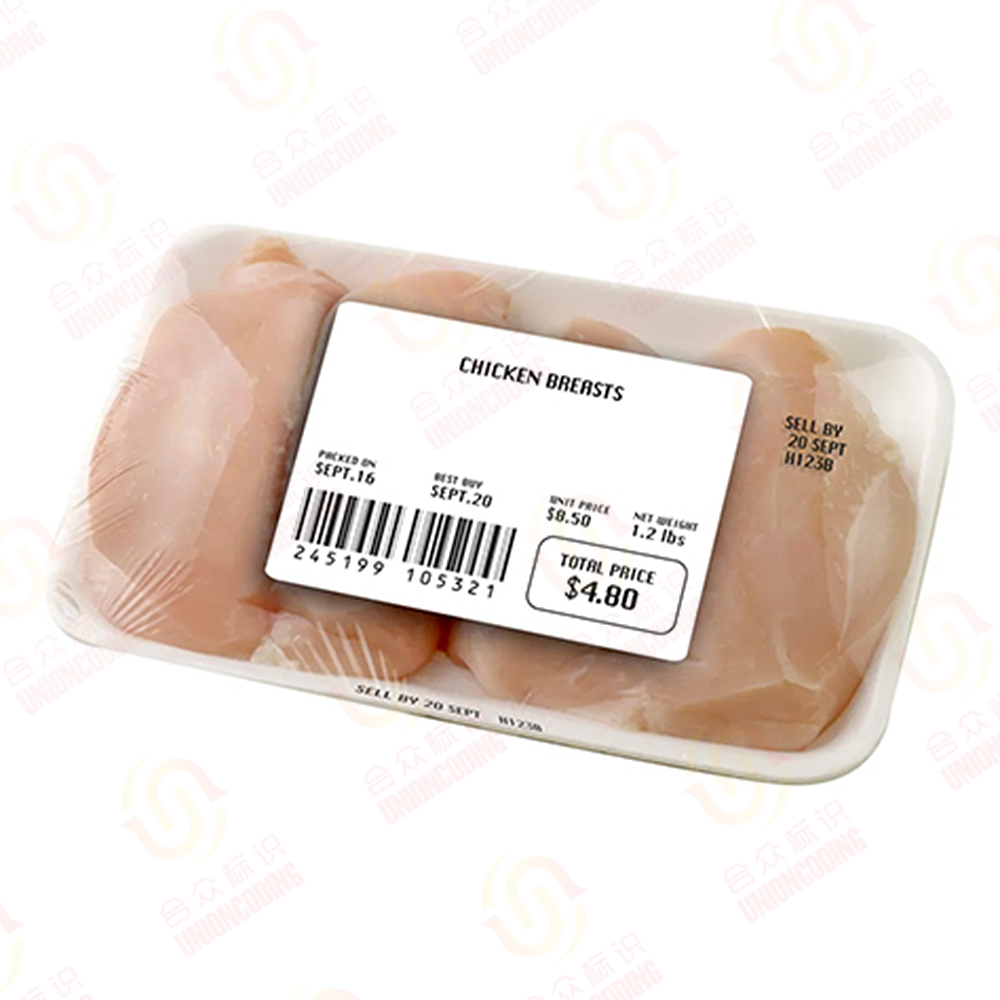

This Videojet print and apply labeling machine can aid with high contrast bar codes and other production information on various substrates like shrink and stretch wrap, cardboard boxes, egg cartons and cases.

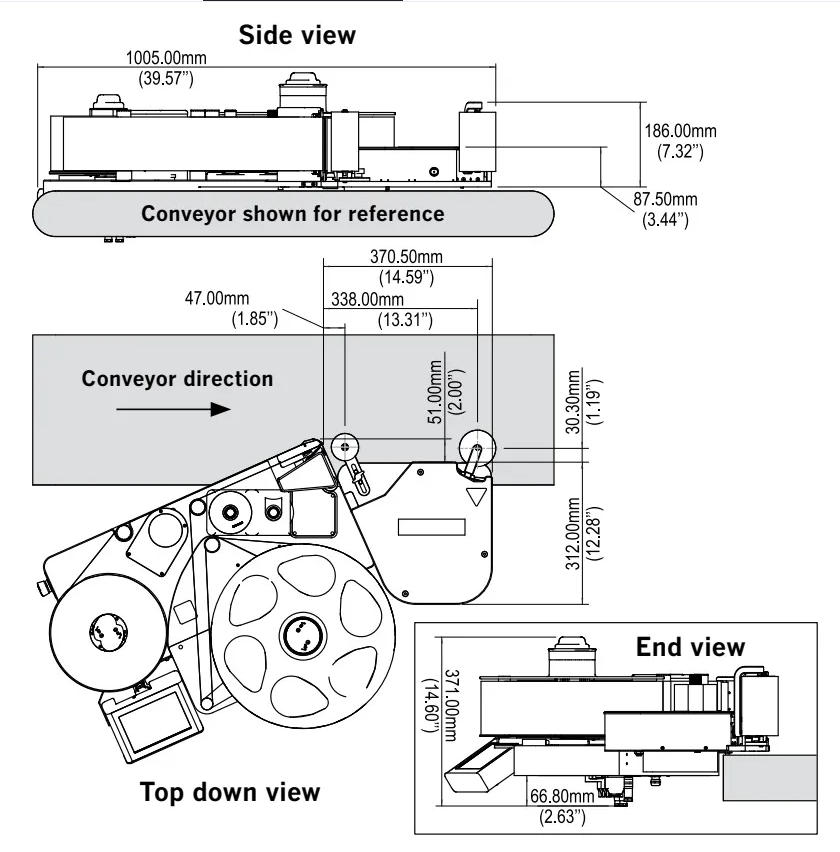

| Application method | Top mount swing arm with 12.0"(305mm) reach |
| Print technology | Thermal Transfer printing with intelligent Motion Ribbon Drive and Direct Thermal 53mm and 107mm printhead versions |
| Print resolution | 300dpi/200dpi emulation mode |
| Printhead health monitoring | Tool-free quick release printhead replacement |
| Print speed | 1.6-19.7inches/sec(40-500mm/sec) |
| Throughput | Up to 60 packs per minute (depending on label size, telescopic stroke) Recommended max conveyor speed98.4ft/min (30m/min) |
| Tamp sizes | Standard: 100mm x 100mm Optional: 50mm x 120mm, 75mm x 120mm, 100mm x 50mm, 100mm x 70mm, 100mm x 150mm |
| Ribbon specification | Width: 2.2" (55mm), 3.0" (76mm) and 4.3" (110mm) (standard) and 6.4" (162mm) Capacity: Up to 830m, including automatic ribbon save (< 1mm ribbon gap between successive prints irrespective of label size or speed) Low Ribbon and End of Ribbon detection with predicted changeover time built in as standard |
| Label specification | Width/length: 1.6" to 6.5" / 2.0" to 11.8" (40 to165mm / 50 to 300mm) Capacity: Up to 400mm spool diameter (typically delivers over 9000 typical GS1 bar code labels per roll) Low Labels and End of Label Reel detection, with predicted changeover time built in as standard Automatic adjustment for label/backing type and label size 400MB on-board label database, sufficient for 25,000 typical GS1 bar code label designs |
| Print capabilities | Full downloadable font support using TrueType® fonts (including multiple languages and Unicode support); fixed, variable and merged text fields; flexible date/time formats; flexible shift code formats; auto best before date calculations and concession management; calendar rules; auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to maximum print area); link fields to databases; scalable text and text blocks |
| Bar codes supported | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, GS1-128, Code 128, ITF, RSS (including 2D composite codes); others available upon request |
| Connectivity | Ethernet, Power-over-Ethernet, RS232, Configurable I/O (24V, PNP and volt free) USB (for backup/restore and label upload), remote Control Videojet 9550 via a web browser |
| Communications protocols | Compatible with Videojet ClarisuiteTM Videojet binary and simple-ASCII protocols Compatible with any label design software which supports Zebra or Sato print engines Zebra (ZPL), Sato (SBPL) and Markem-Imaje (Cimcomms) protocol support |
| Interface | CLARiTYTM Controller with interactive on-board video tutorials |
| Language capabilities | Arabic, Bulgarian, Czech, Danish, English, German, Greek, Finnish, French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, simplified Chinese, Slovak, Spanish, Swedish, Thai, Turkish, Traditional Chinese, Vietnamese |
Uptime Advantage
• Optimize maintenance labor by removing common wear and adjustment parts
• Integrated pack/case detect and applicator home/extended sensors fitted as standard
• Intelligent MotionTM technology precisely controls label feed with no clutches and no nip roller
• Clean, robust design protects components during operation to help maximize uptime
Built-in productivity
• Optimize print quality and printhead life with automatic printhead pressure regulation
• Track performance and help achieve OEE improvements with on-screen diagnostics
Code Assurance
• Virtually eliminate operator errors, helping to ensure products are coded correctly with built-in Code Assurance software features
• Minimize operator touches with on-board label database for accurate job selection
• Automate bar code creation by linking data from multiple text fields
Simple usability
• Perform label and ribbon changes in less than 60 seconds through simplest web path
• Quickly check status and select jobs with single, intuitive interface that makes operation easy
