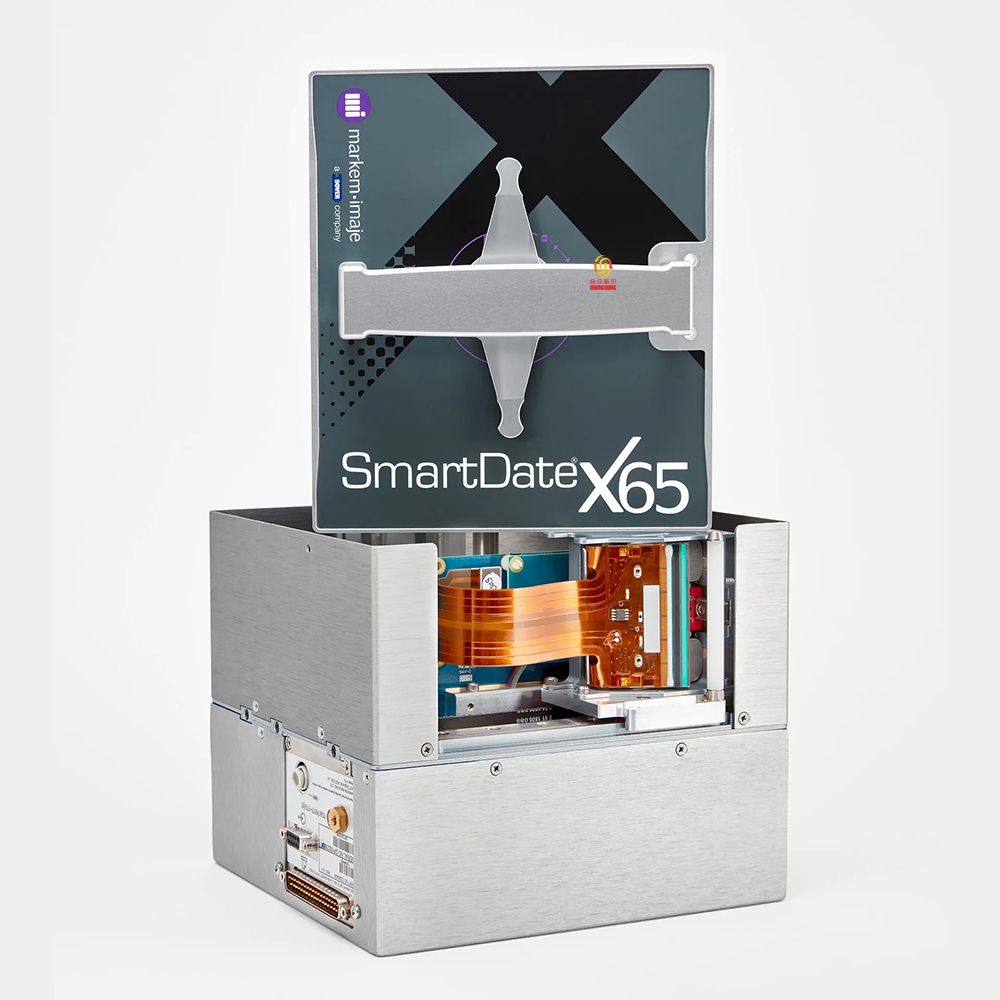

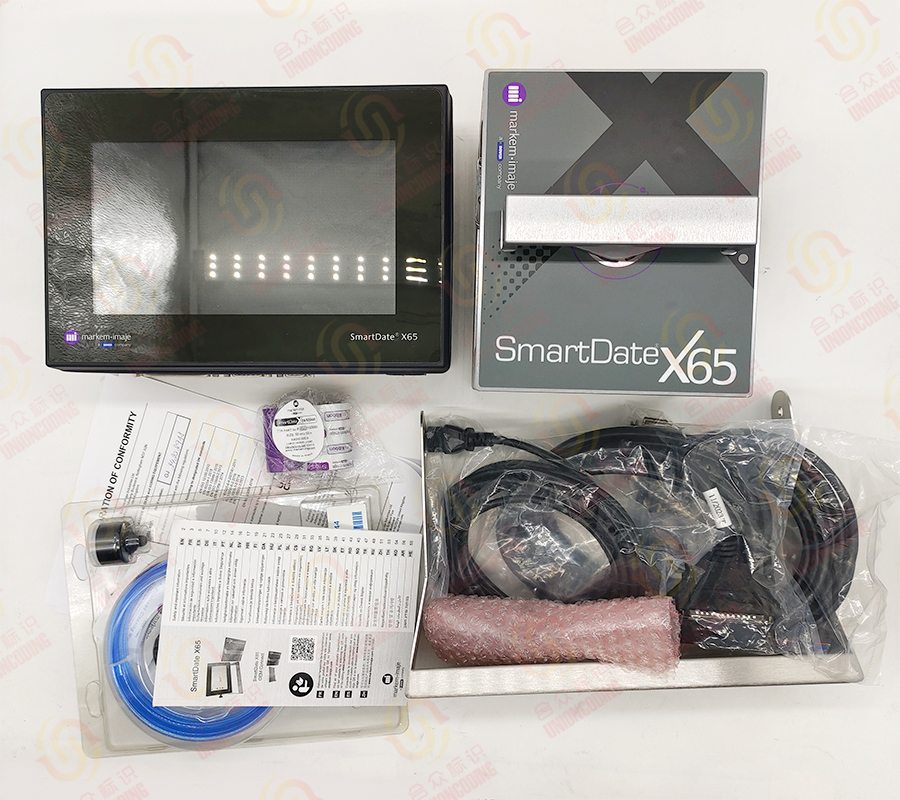

markem X65
Markem
Designed for the most demanding, high-volume applications, the SmartDate X65 delivers high resolution coding on flexible film packaging as fast as 455 packs per minute. Its fully intuitive 10.1” user interface makes daily operations easy and straightforward and provides the most valuable information you need to optimize and enhance your Overall Equipment Effectiveness (OEE) through MI Sigma reporting.
Enhanced SmartDate experience
Coder can be configured to monitor your 5 most important production metrics directly from your home screen e.g., pack rate, throughput, availability.
Animated help and ‘how to’ tutorials provide guidance on setup and daily maintenance procedures to ensure consistent print quality.
High-performance printing
In addition to its dead-dot detection system, the easy-to-install SmartDate Detect-Plus system* checks and confirms the presence, position and quality of the code on every pack and directly on the user 10.1” interface.
Print speed can be set from 10 mm to 1800 mm per second allowing for 455 printed packs per minute at 300 dpi.
Unmatched and cost-effective reliability
Zero preventive maintenance: Robust direct ribbon drive and cassette design contain no wear parts.
All-in-one printer for enhanced flexibility: Both intermittent and continuous configurations with a 53 mm printhead are available on the same coder.
Up to 15%** more codes per roll: Large choice of ribbon rolls based on your packaging type and needs.
Operations
• User interface: 10.1” full colour 1024 x 600 touch screen for message
selection, variable data entry, diagnostics and system setup
• MI Sigma Functionality
• Advanced health and availability monitoring
• Configurable user home screen
• Animated help tutorials: ribbon fitting, printhead cleaning, printhead replacing
• Simple print adjust and image adjust
• Master/slave function to allow master control for up to 7 slaves
• Configurable password protection capability
• WYSIWYG print preview of printed message, real-time display of remaining
print capacity expressed in hours and number of prints
• Full diagnostics (pack rate, speed)
• Robust LED status indicators on the printer
• Webbing diagram for fast ribbon changes
• Hardware interface: Inputs: “print go” and 1 configurable input
Outputs: fault, warning, and 2 configurable outputs
• Software interface: USB for downloading images, settings and data files.
RS232, Ethernet communications standard. Communications protocols for
PCs, PLC and packaging machines, including full remote control web server
Other characteristics
• Supplies: thermal transfer ribbon available in a variety of grades and
colors
• Maximum ribbon length: up to 1100 m
• Minimum ribbon width: 20 mm
• Maximum ribbon width: 55 mm
• Weight: Printer: 7.8 kg, Color controller: 4.5 kg
• Electrical power supply: 90 – 264 V with automatic switching; frequency
47/63 Hz; power 150 VA
• Air supply: 6 bar/90 psi (maximum) dry, uncontaminated
• Air consumption: down to 0.4 ml/print at 2.5 bar
• Operating temperature range: 0 to 40°C
• Humidity: 10% to 90% non-condensing
