videojet 6530
videojet
407961 407962
The printing units of Videojet TTO family of solutions, are designed to increase company productivity.
The printing units can be installed on any labelling machine, label applicator and labelling systems manufactured by Etipack and other major manufacturers.
They provide advanced features to manage ribbon optimization.

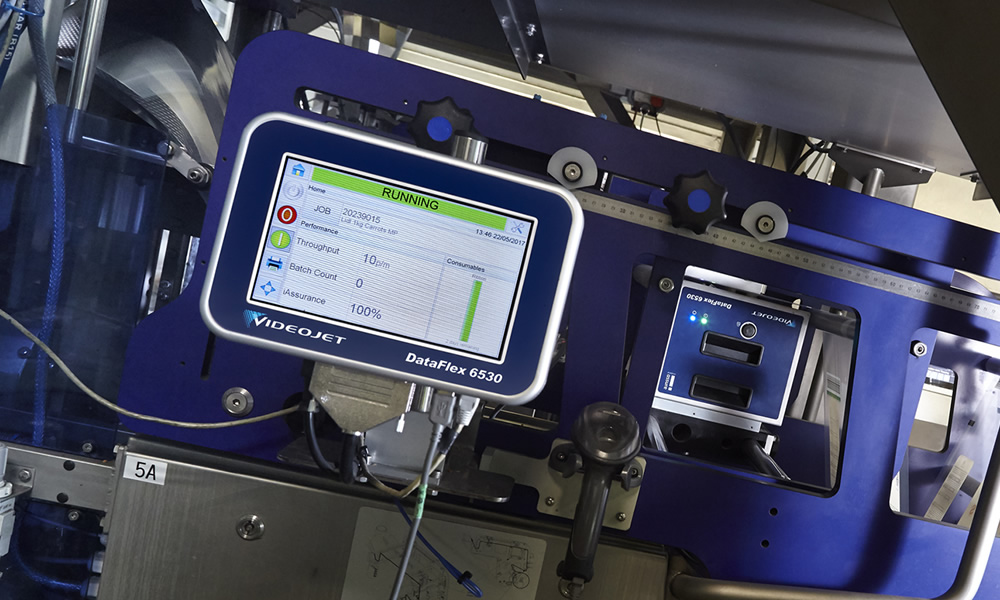

The overprinter is installed on the labelling machine or system while the remote control unit allows any appointed operator easy interaction even without network connection.

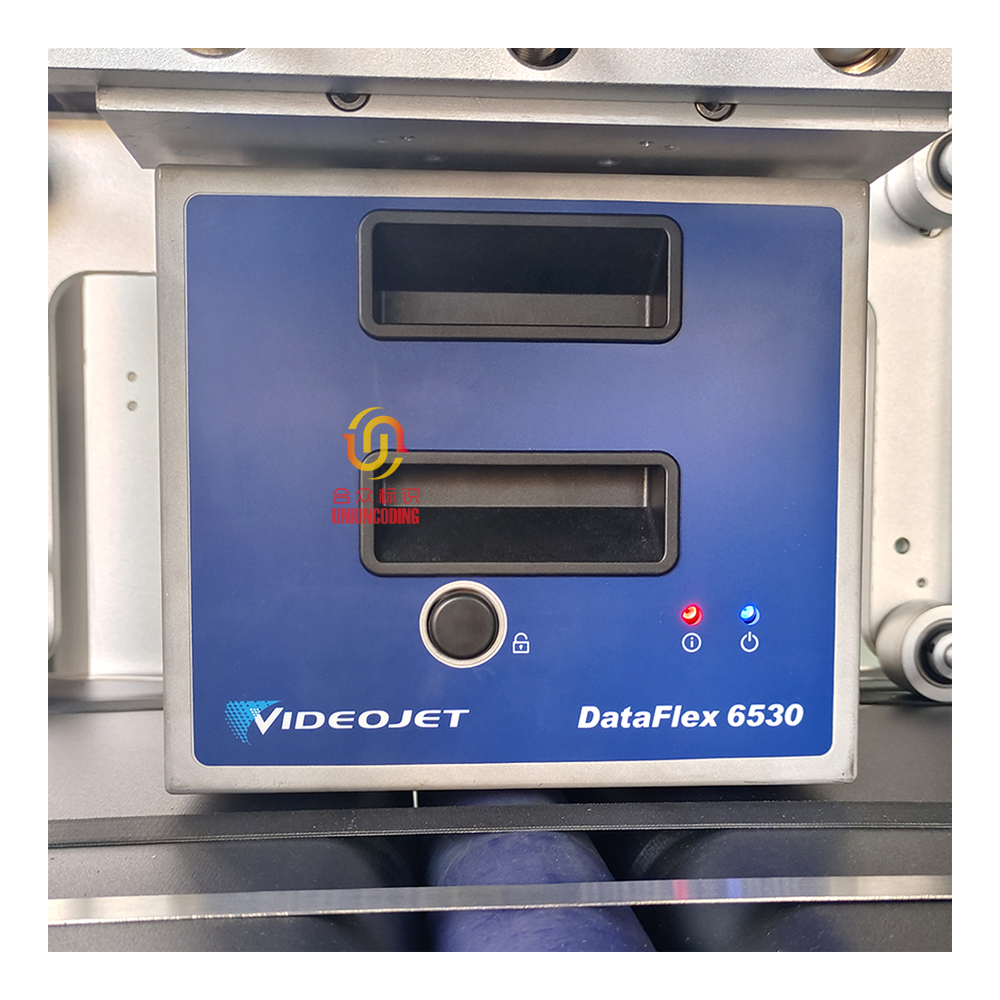

The Videojet DataFlex® 6530 Thermal Transfer printhead is ideal for applications such as vertical packaging machines and is available with 53 mm and 107 mm printheads.
It features a high-speed print speed up to 1000 mm/s and throughput up to 700 ppm.
Features of the overprinting unit
Guaranteed code control with iAssure™ technology and Videojet CLARiTY™ software
Interfaces RS232, dual Ethernet, USB for memory stick and hand scanner reader
Control Unit – TFT SVGA full-color LCD print preview WYSIWYG, full diagnostics integrated
| Characteristics | |
| Printing type | Thermal Transfer (TTO) |
| Printing area | 53mmx75mm 107mmx75mm |
| Overprint speed | ≤ 10 to 600 mm/sec |
| Power supply | 100-240 VAC |
| Air supply | not necessary |
| Resolution | 300 dpi (12 dots/mm) |
| Dimensions | 53mm version:225x178x182mm 107mm version:225x178x237.4mm |
| Barcode | all available |
The printing units of Videojet TTO family of solutions, are designed to increase company productivity.
The printing units can be installed on any labelling machine, label applicator and labelling systems manufactured by Etipack and other major manufacturers.
They provide advanced features to manage ribbon optimization.
The overprinter is installed on the labelling machine or system while the remote control unit allows any appointed operator easy interaction even without network connection.
The Videojet DataFlex® 6530 Thermal Transfer printhead is ideal for applications such as vertical packaging machines and is available with 53 mm and 107 mm printheads.
It features a high-speed print speed up to 1000 mm/s and throughput up to 700 ppm.
Features of the overprinting unit
Guaranteed code control with iAssure™ technology and Videojet CLARiTY™ software
Interfaces RS232, dual Ethernet, USB for memory stick and hand scanner reader
Control Unit – TFT SVGA full-color LCD print preview WYSIWYG, full diagnostics integrated
| Characteristics | |
| Printing type | Thermal Transfer (TTO) |
| Printing area | 53mmx75mm 107mmx75mm |
| Overprint speed | ≤ 10 to 600 mm/sec |
| Power supply | 100-240 VAC |
| Air supply | not necessary |
| Resolution | 300 dpi (12 dots/mm) |
| Dimensions | 53mm version:225x178x182mm 107mm version:225x178x237.4mm |
| Barcode | all available |
