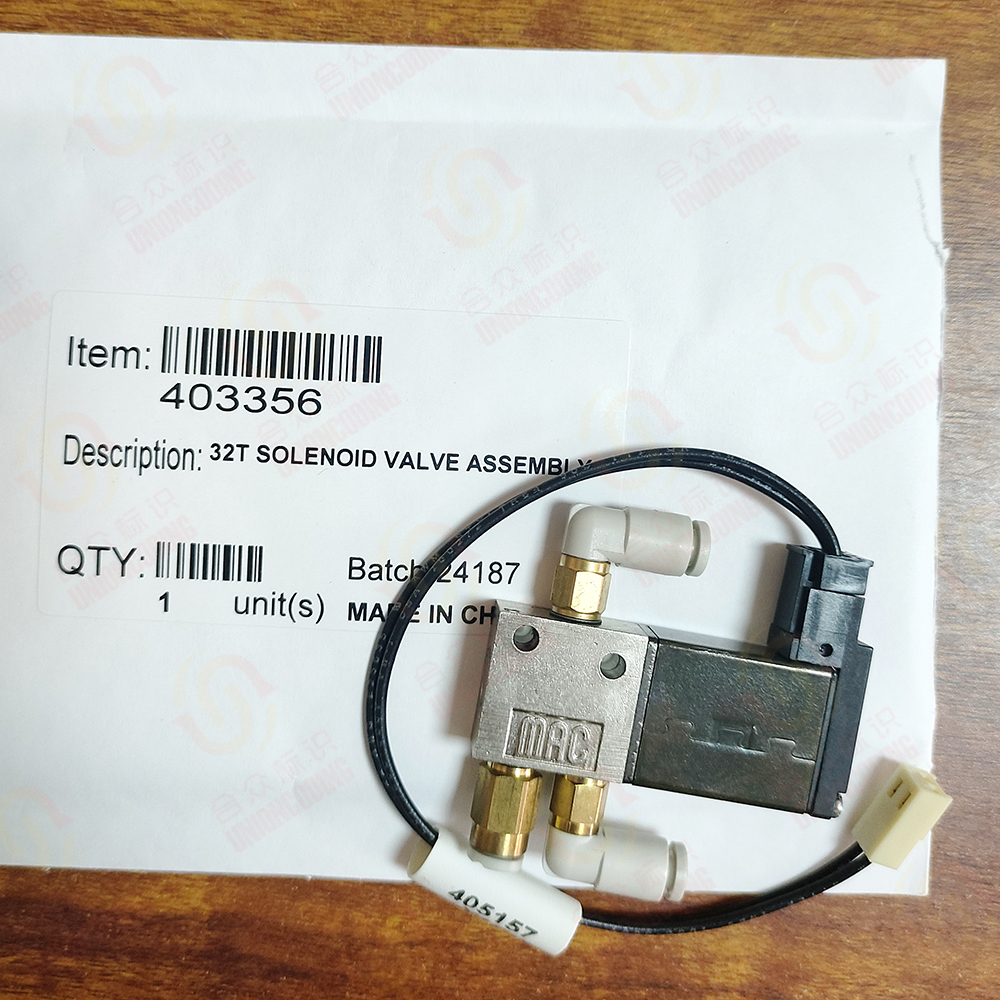

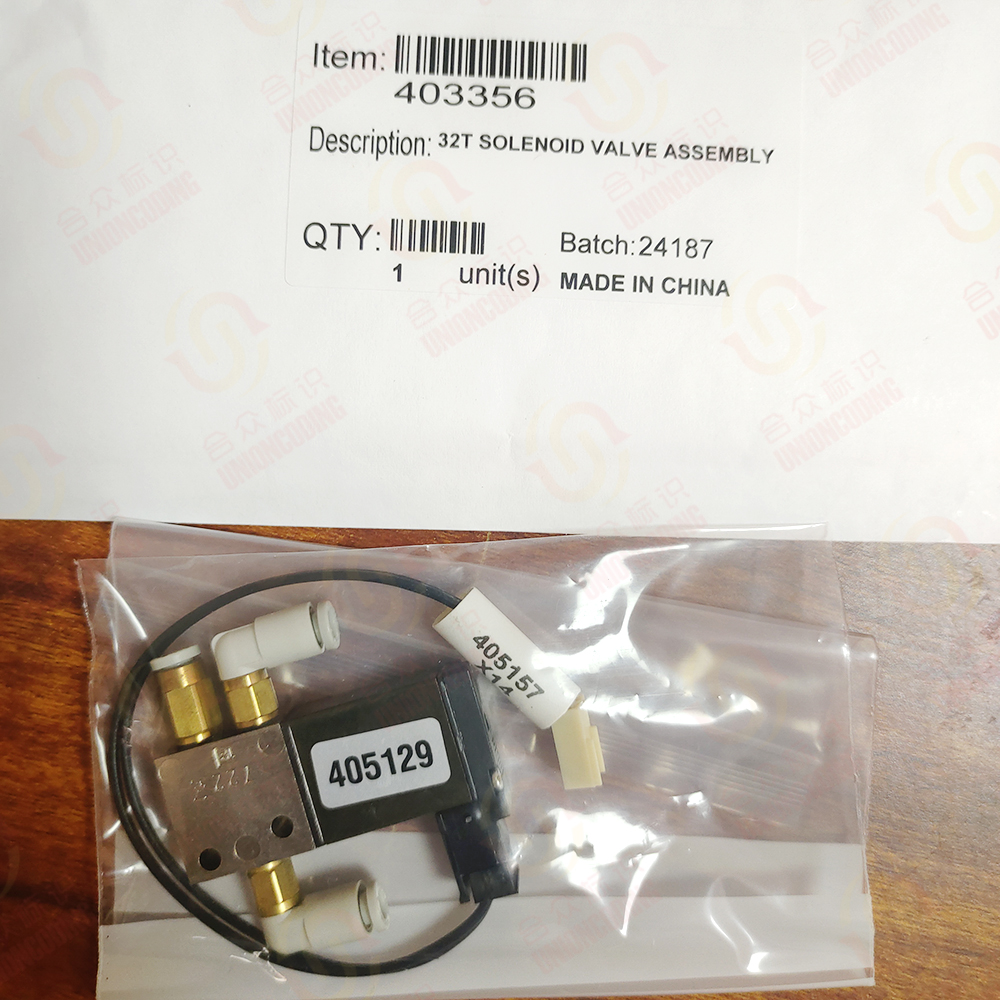

Videojet SPARE 32T SOLENOID VALVE ASSY 403356

Availability:
Inquire

  • 403356

  • videojet

Videojet SPARE 32T SOLENOID VALVE ASSY 403356

403356

SPARE 32T SOLENOID VALVE ASSY

Product Family: Thermal Transfer Overprinter (TTO)

Product Type: Parts

Sold as: 1 each

403356-1

备件名称 6210 6220 6230 6320 6330 6420 6530 DF+(IP65)
32mm printhead 403325 403325 408300 403325 408657 X X X
53mm printhead X X X 215984 407933 215984 407933 215984
107mm printhead X X X X X 216585 408554 216585
Spare Printhead Support X X 408292 X 408658(32)/407934(53) X 407934(53)/408680(107) X
PRINTHEAD SPRING SET of 10 215986 215986 X 215986 X 215986 X 215986
STRUT RETURN SPRING (PK.10) 216047 216047 X 216047 X 216047 X 216047
SPARE RH 32MMPRINTHEAD PIVOT ASSEMBLY 403197-RH 403197-RH 408292 405749 408651 X X X
SPARE LH 32MMPRINTHEAD PIVOT ASSEMBLY 403197-LH 403197-LH 408292 405748 408652 X X X
53mm Right Hand Pivot Assembly X X X 401072 407925 401072 407925 401072
53mm Left Hand Pivot Assembly X X X 401165 407926 401165 407926 401165
107mm,PRINTHEAD PIVOT ASSEMBLY R X X X X X 216580 408666 216580
107mm,PRINTHEAD PIVOT ASSEMBLY L X X X X X 216588 408667 216588
Printhead Cable LH 32mm 403335 403335 X 405750 X X X X
Printhead Cable RH 32mm 403334 403334 X 405751 X X X X
Printhead Cable Left Hand -53mm X X X 216366 X 216366 X 216366
Printhead Cable Right Hand-53mm X X X 215983 X 215983 X 215983
Printhead Cable LH-107mm X X X X X 216578 X 216578
Printhead Cable RH-107mm X X X X X 216577 X 216577
32mm Cassette Accessory Ribbon Cartridge 403328 404379 408305 405742 X X X X
Cassette 53mm Cassette X X X 405742 407948 405743 407947 ?
Cassette 107mm Cassette X X X X X 405744 408682 X
MANDREL LEAF SPRINGS （6x30：6个/PK，6x20：10个/PK） 402411 402411 402411 402411 407952 402411 407952 402411
Mandrel Assembly 32mm 403333 403333 403333 X X X X X
Mandrel Body Assembly 53mm X X X 216049 407951 216049 407951 216049
Mandrel Body Assembly 107mm X X X X X 216581 408684 216581
SPARE 32T SOLENOID VALVE ASSY 403356 403356 X 215994 X 215994 X 215994
SPARE 53mm RIBBON MOTOR w SENSOR X X X X 407871 X 407871 X
Spare Printhead Drive Stepper Assy 403352 403352 408296 215993 407873 215993 407873 215993
Spare 53mm TT(iii) Printhead Motor X X X X 407872 X 407872 X
SPARE VJ6110 LH (PRINTER ONLY) 403350 404360 408289 405718 408656 X X X
SPARE VJ6110 RH (PRINTER ONLY) 403349 404362 408290 405719 408655 X X X
DATAFLEX 6320 PRINTER ONLY LH 53MM X X X 405720 407973 405722 407975 403987
DATAFLEX 6320 PRINTER ONLY RH 53MM X X X 405721 407972 405723 7974 403988
DATAFLEX 6420 PRINTER ONLY LH 107MM X X X X X 405724 408673 X
DATAFLEX 6420 PRINTER ONLY RH 107MM X X X X X 405725 408672 X
SPARE MAIN PRINTER PCB 403332 404377 408271 405717 407912 402810 407911(53)/408659(107) 402810
SPARE CLARiTY CONTROLLER 403351 404361 408302 405734 407940 405735 407939 403983
SPARE 5.7 CLARiTY PROCESSOR PCB 403345 403345 408276 402796 407918 402796 407918 402796
SPARE 5.7 CLARiTY LCD ASSY 403344 403344 408303 WLK409413 407941 WLK409413 407941 402789
SPARE LEAD ASSY (LOW PROFILE) 403329 403329 408310(3m) 402916 407757(3m) 402916 407757(3m) 402916
VJ 6530/6330 PSU Assembly X X X X 407943 X 407943(53)/408681(107) X
SPARE 5.7 CLARiTY PSU 403348 403348 408277 402801 407921 402801 407921(53)/408662(107) 402801
SPARE 32T PRINTHEAD PCB RH X X 408273 X 408649 X X X
SPARE 32T PRINTHEAD PCB LH X X 408273 X 408650 X X X
Spare 53mm PRINTHEAD PCB - RIGHT HAND X X X X 407915 X 407915 X
SPARE 53mm PRINTHEAD PCB LEFT HAND X X X X 407916 X 407916 X
Spare 107mm_Printhead PCB - RH X X X X X X 408660 X
Spare 107mm_Printhead PCB - LH X X X X X X 408661 X
PRINTHEAD HOME SWITCH 216036 216036 408274 216036 X 216036 X 216036
32mm PEEL ROLLER (5 OFF) 403324 403324 403324 X X X X X
53mm, PEEL ROLLER (PK.5) X X X 216031 401035 216031 401035 216031
107mm, PEEL ROLLER (PK.5) X X X X X 216583 407603 216583
53mm_Peel Arm Assembly X X X X 407922(RH）/407923(LH) X 407922(右)/407923(左) X
107mm_Peel Arm Assembly X X X X X X 408663(右)/408664(左) X
32mm CASSETTE ROLLER (SET OF 6) 403323 403323 403323 X X X X X
53mm,CASSETTE ROLLER,(set of 6 rollers) X X X 216032 216032 216032 216032 216032
107mm,CASSETTE ROLLER (PK.6) X X X X X 216584 401602 X
RIBBON SENSOR PCB X X 408275 X 407917 X 407917 X
CALIBRATION EMITTER ASS'Y X 215990 X 215990 X 215990 X X
32T Calibration Kit RH 403340 403340 X 215991 X 215991 X 215991
32T Calibration Kit LH 403341 403341 X 216367 X 216367 X 216367
iAssure Emitter X X X X 407935(R)/407936(L) X 407935(R)/407936(L) X
REGULATOR, AIR, ASSEMBLY for TT 401231 401231 X 401231 X 401231 X 401231
CLEANING KIT 216054 216054 216054 216054 216054 216054 216054 216054
BRACKET PLATEN RUBBER (PK.10) 403357 403357 403357 403357 403357 403357 403357 403357
32t Bracket Platen Rubber Printing Pad 1 Piece/Set SP403357 SP403357 SP403357 SP403357 SP403357 SP403357 SP403357 SP403357
TIMING BELT 403330 403330 408298 216037 407931 216037 407931(53)/408677(107) 216037
IDLER PULLEY ASSY X X 408299 404073 407932 404073 407932(53)/408678(107) 404073
COUPLING BODY X X 和电机一体 100191 和电机一体 100191 和电机一体 100191
MODIFIED AIR CYLINDER Kit SP103004 408281 216033 X 216033 X 216033 X
128Mb COMPACT FLASH CARD 403339 404378 408272 405752 407914(旧主板)/409769(新主板) 402795 407913(旧主板)/409770(新主板) 402795



Previous:
Next:
get best quote

Related Products

Videojet 215994 Dataflex Plus Solenoid Air Valve Assembly Original
Videojet 215994 Dataflex Plus Solenoid Air Valve Assembly Original

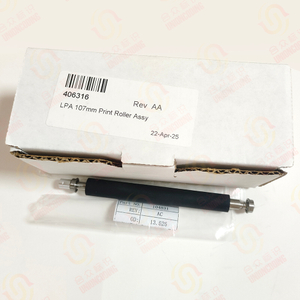

Videojet 406316 LPA 107mm Print Roller Assy
Videojet 406316 LPA 107mm Print Roller Assy

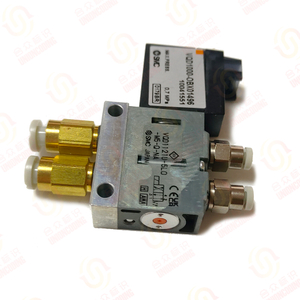

MARKEM-IMAJE PRINT ACTION SOLENOID ASSEBLY 10041551
MARKEM-IMAJE PRINT ACTION SOLENOID ASSEBLY 10041551

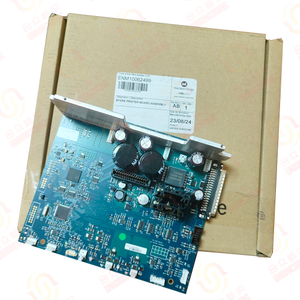

MARKEM-IMAJE SPARE PRINTER BOARD ASSEMBLY ENM10062499
