9045
Markem

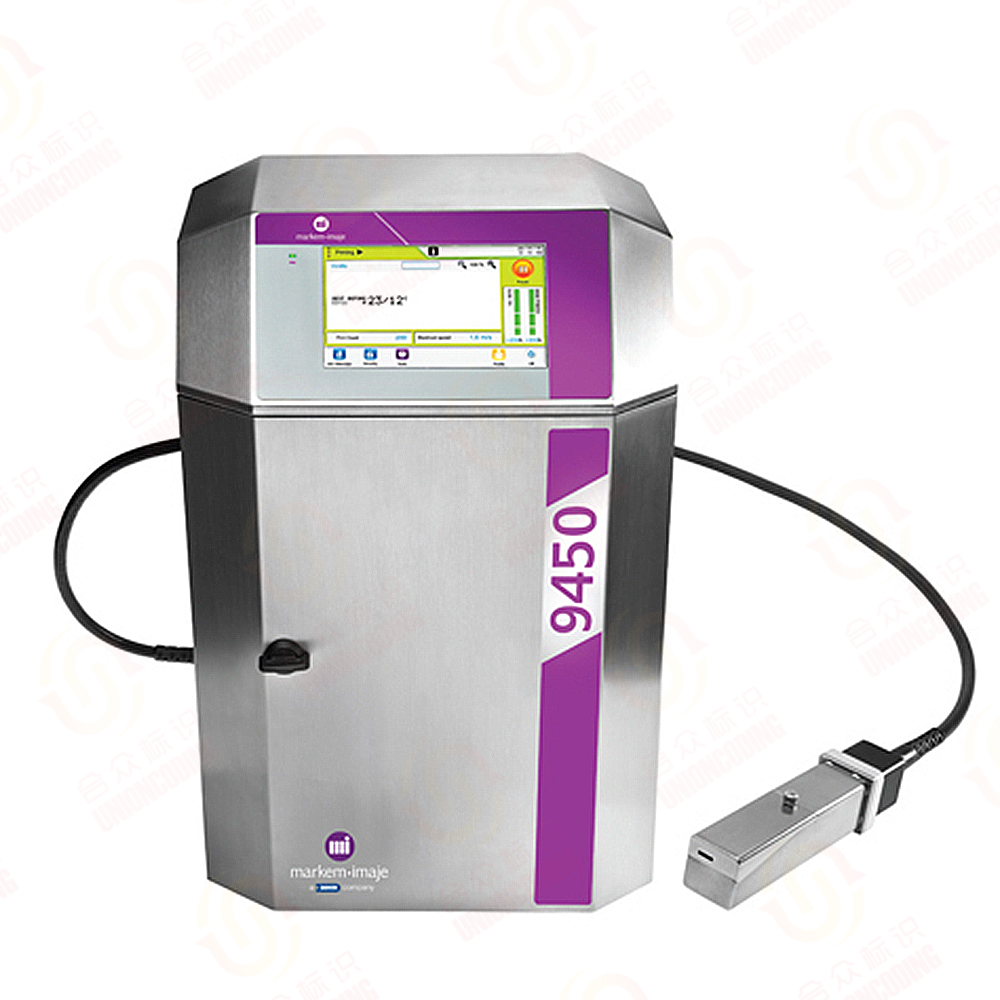

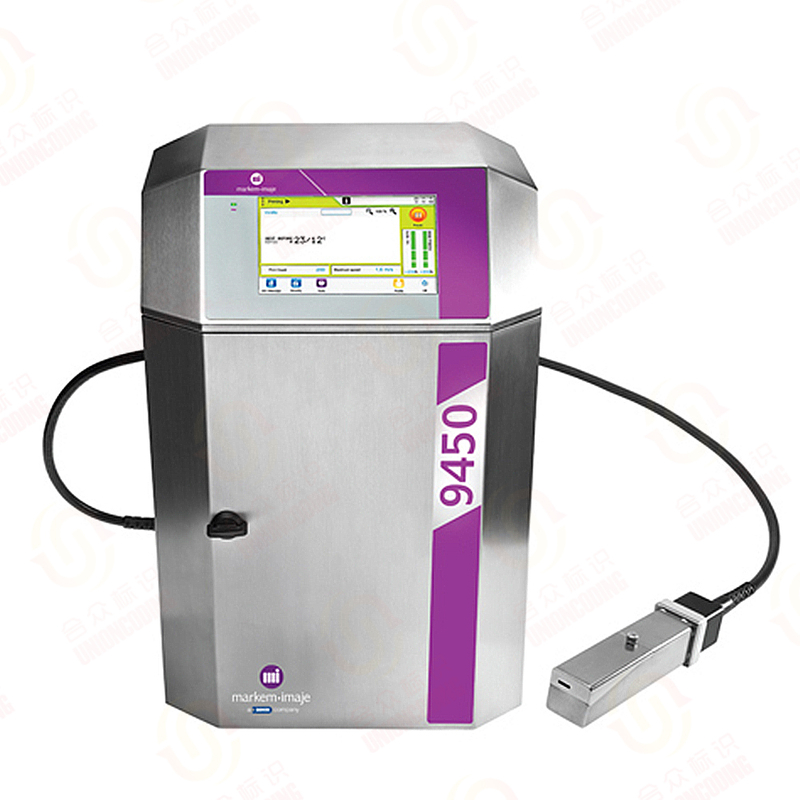

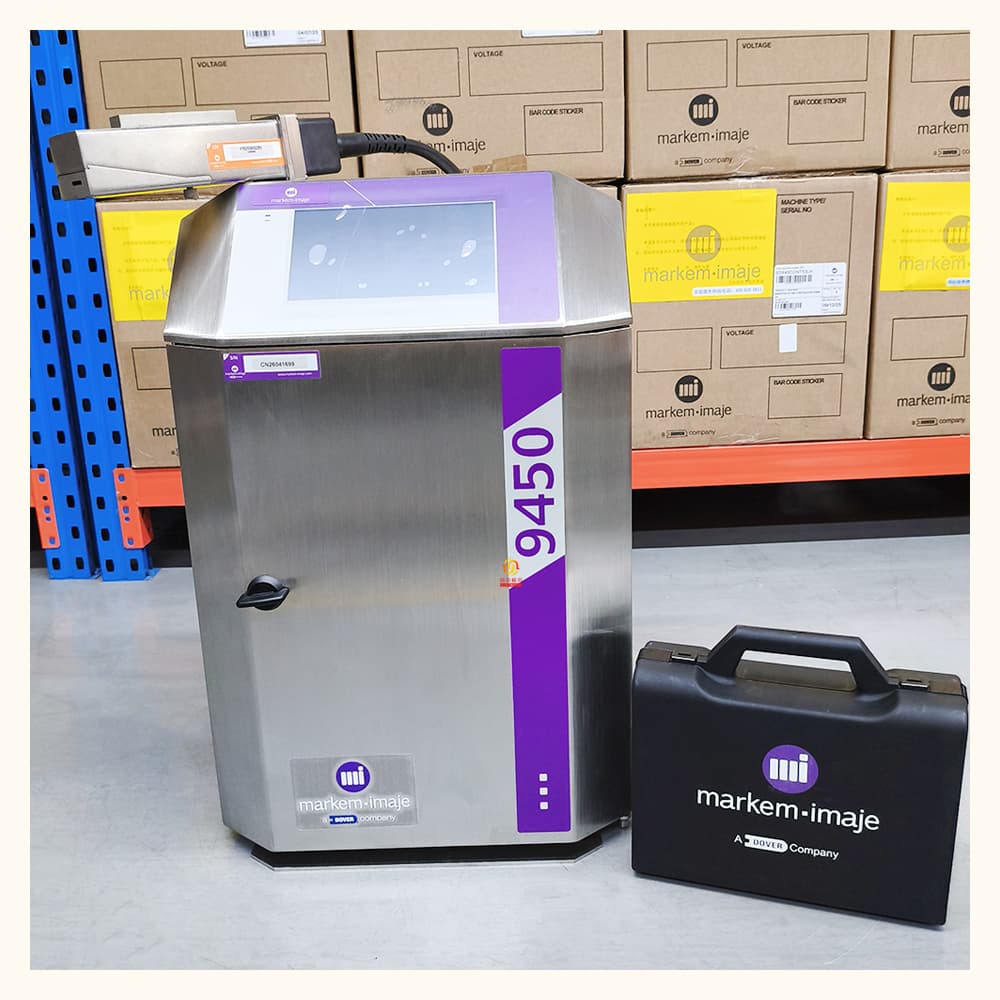

Markem Imaje 9450 Small Character Inkjet Coder

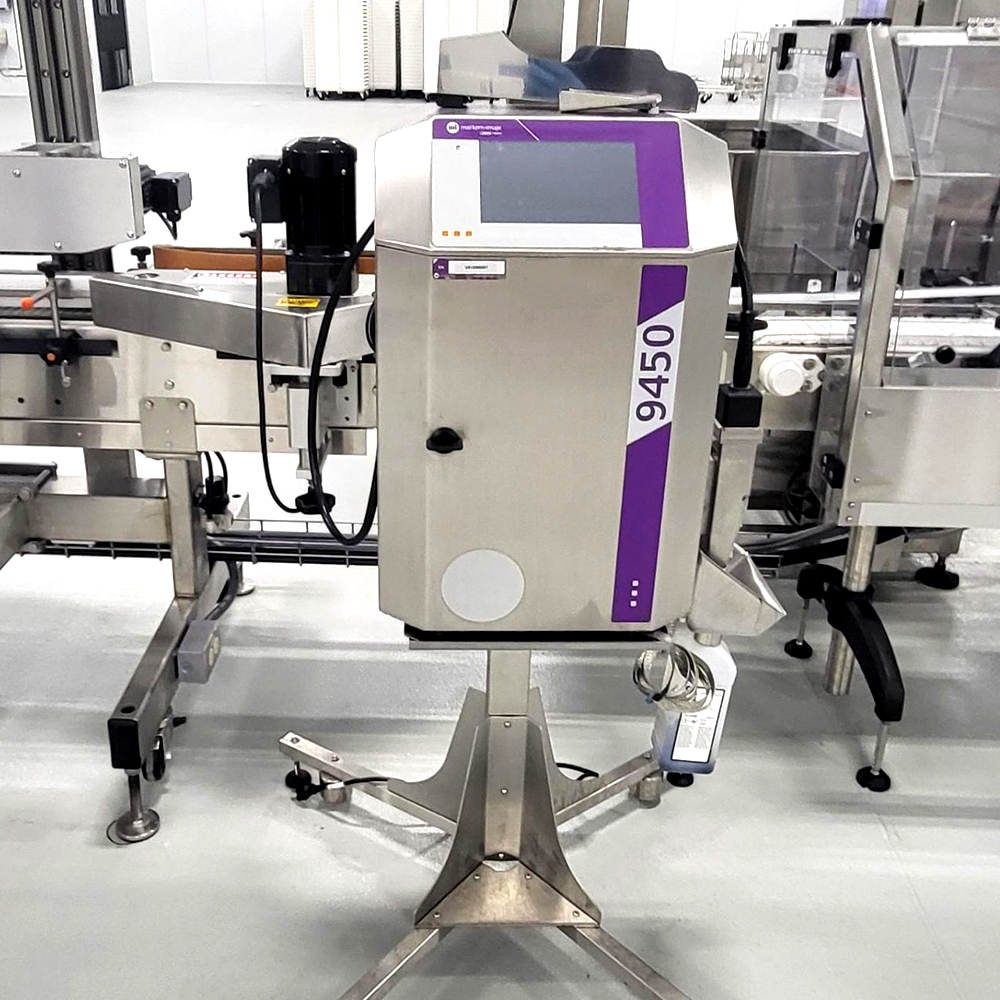

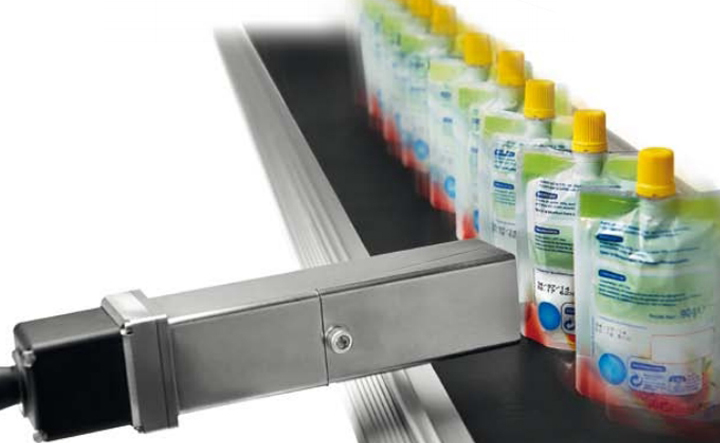

The Markem-Imaje 9450 inkjet printer is dedicated to improving production line efficiency and reducing operating costs. It is a general-purpose small character inkjet printer that is capable of performing medium and high-speed inkjet operations in multiple industries. The 9450 keeps up with and improves the customer's production speed, responds to the challenges of marking different substrates with recognized performance and availability, and ensures the accuracy and safety of product marking.
| 9045 | 905C | |
| Identification features | Printing resolution: G nozzle-71dpi, M nozzle-115dpi Print 1-5 lines Character height 5-32 dots, 1.2-11.2 mm Maximum printing speed 6.6 m/s Various barcodes and QR codes: EAN8/EAN13/GS1-128/UPCA/UPCE, 39 code, 128 code, cross 2/5 code, DM code, QR code, Dotcode | |
| Nozzle features | Single printhead - single nozzle JetSpeed Control ink line speed control. 3m hose | |
| Consumables features | Dye ink, micro-pigment ink. 0.8L ink cartridge, 0.8L additive cartridge. ACM Advanced Consumables Management | Micro-pigment ink, pigment ink 0.6-0.8L ink cartridge, 0.8L additive cartridge. ACM Advanced Consumables Management |
| Operational features | 7-inch touch screen interface. 1000 message capacity Ethernet and RS232 communication. USB port, SD card slot, accessory quick-connect port | |
| Machine specifications | Stainless steel body IP56 protection grade Ambient temperature 5°C to 40°C Humidity 0% to 90%, non-condensing 100-240VAC, 50/60Hz, 60W | |
| Software | Compatible with CoLOS packaging intelligence software | |
| Optional configurations | IP66 protection grade Industrial interface board 6m hose, curved hose Positive pressure protection device | 6m hose Industrial interface board, curved hose Positive pressure protection device |
| Optional accessories | Printer bracket, machine counter Nozzle bracket, Intelli'Swap quick-connect nozzle bracket Sensor, synchronizer, alarm light, nozzle guard, etc. | |
ACHIEVE YOUR TRACEABILITY AND SUSTAINABILTY GOALS
Large choice of high adhesion, high contrast or colored inks to ensure your product is coded right, contrast is guaranteed and code does not rub off. Also available, a line of
environmentally-friendlyink solutions to support your sustainability policyas well as anti-counterfeiting
solutions.
