C350

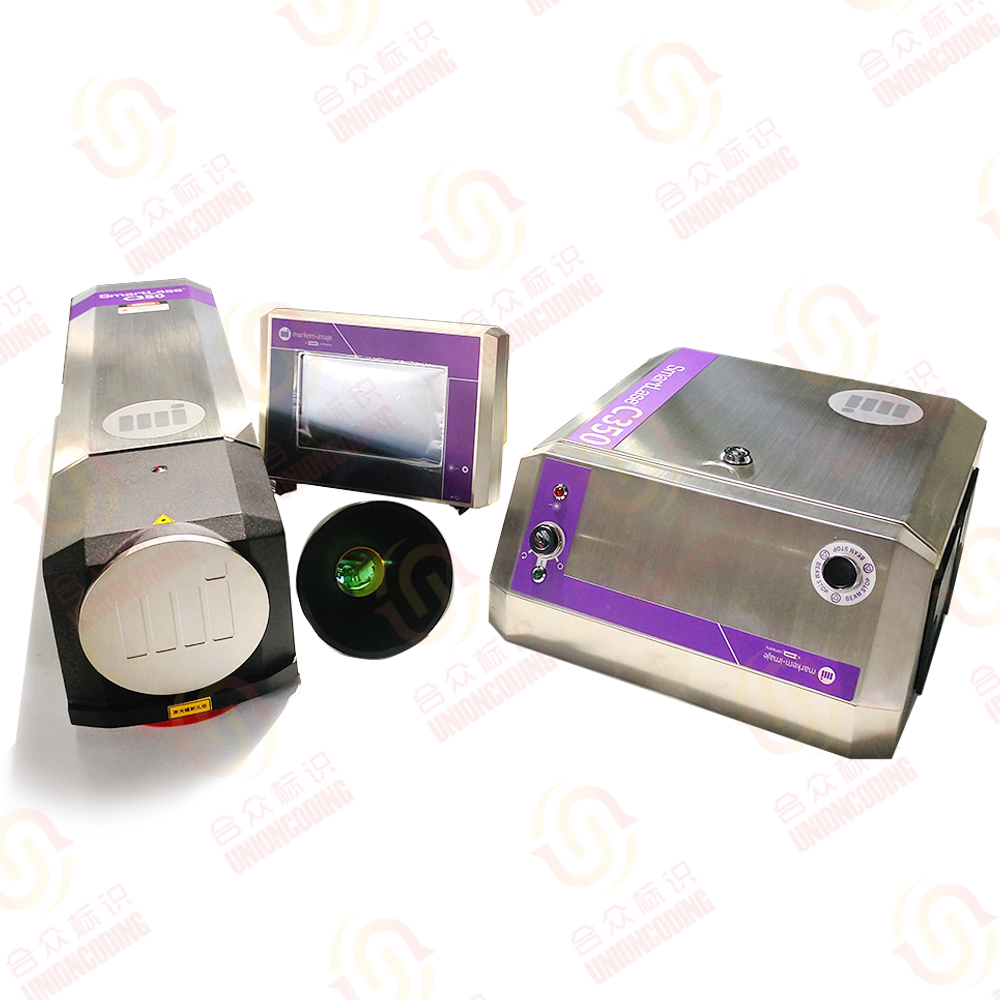

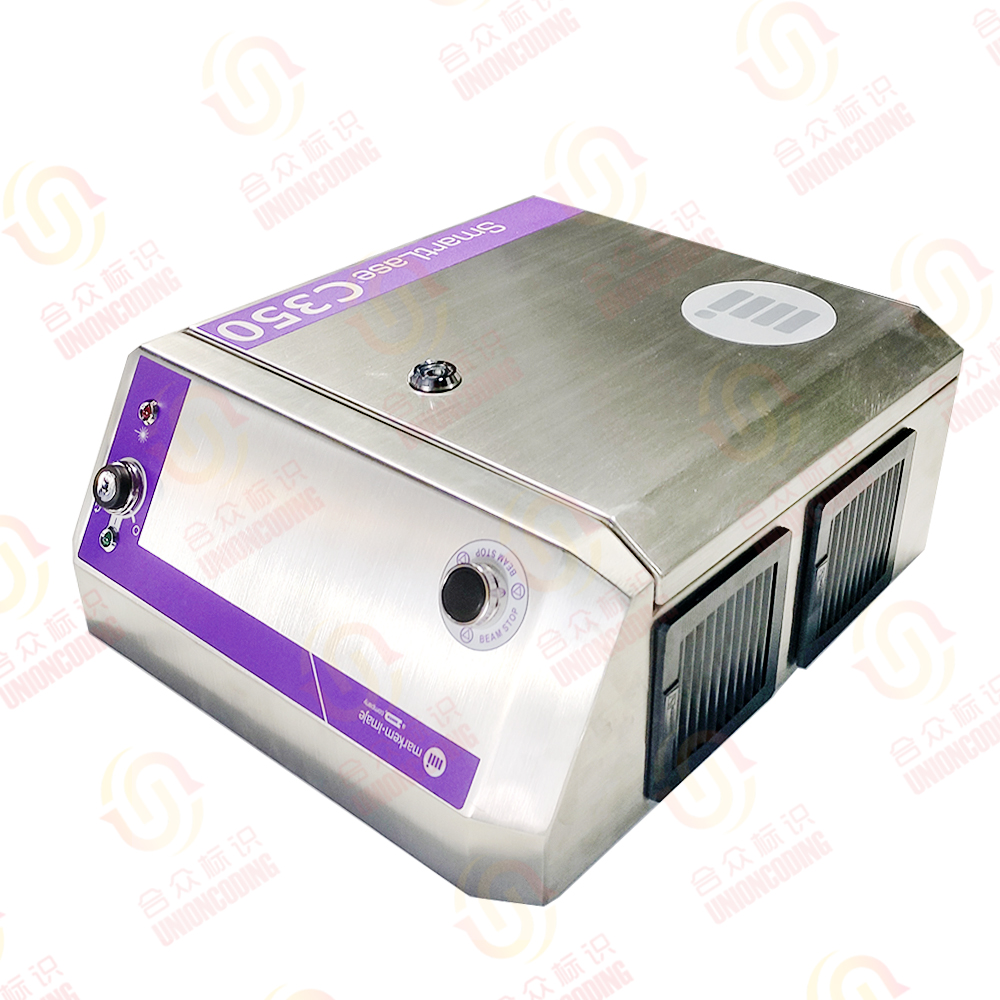

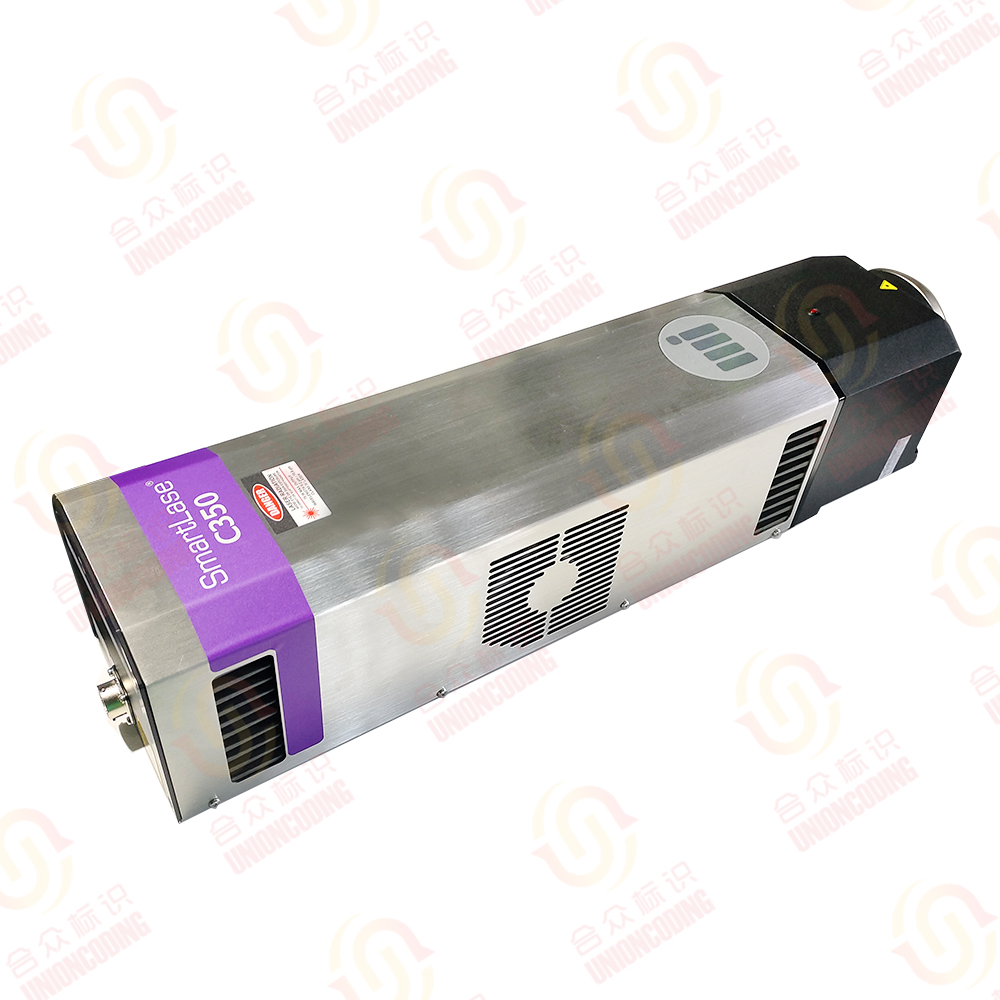

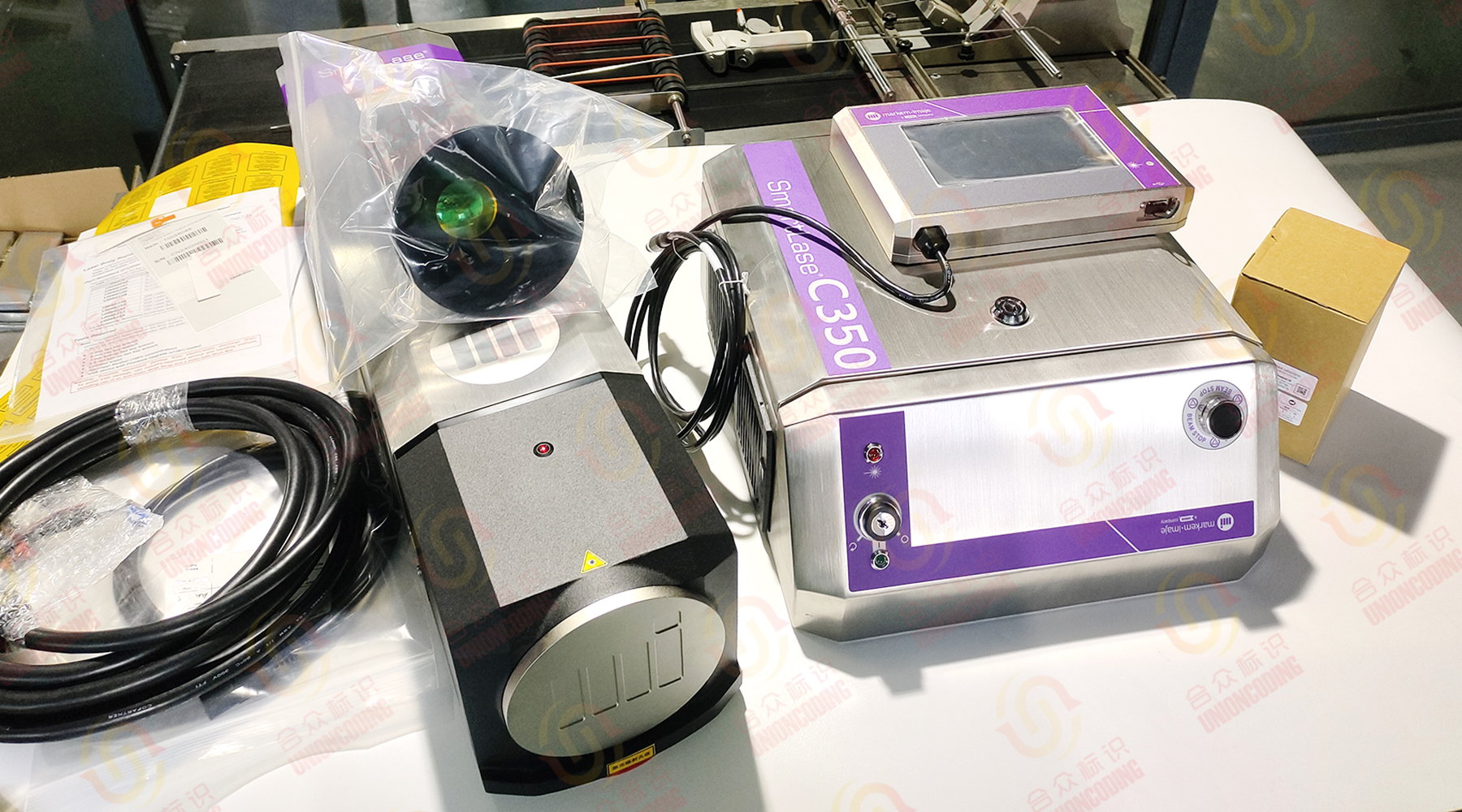

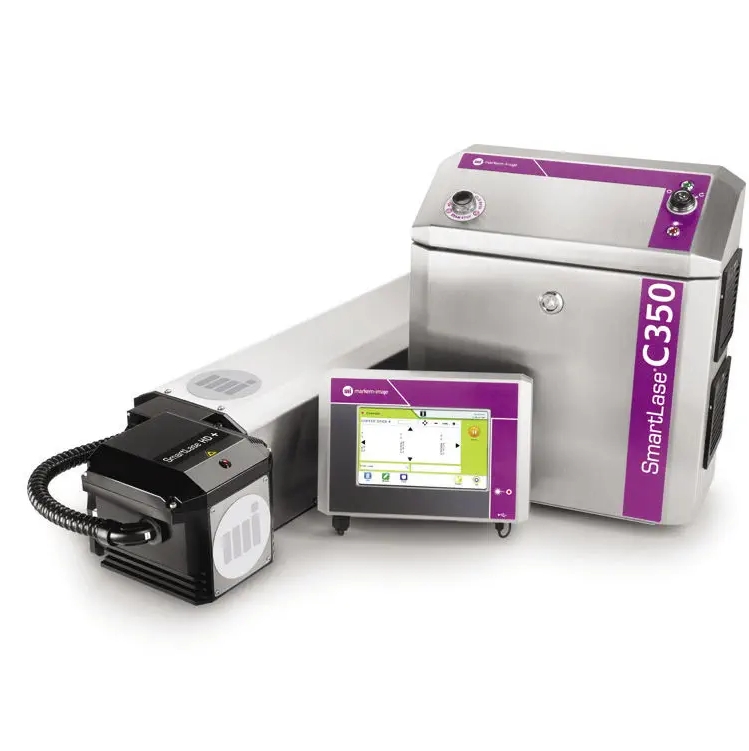

Markem-Imaje C350 Laser Printer
This Markem-Imaje C350 laser inkjet printer uses CO2 Laser Coding Solution to speed up your product packaging production line. The controller, laser print head, and operation interface adopt a modular design, which can be easily configured on various production lines, making it easy for customers to integrate, and is more cost-effective.
| Coding function | Other features |
| Production line speed: up to 120 meters/minute | Laser source power: average 20 watts (pulsed fiber laser) |
| Can be marked on stationary or moving objects | Maximum pulse energy: ImJ (20KHz) |
| Number of lines of text: Only limited by character height and markable area. When using a touch operator interface terminal, only 4 lines can be edited | Operating temperature range: 10-36°C (50-97°F), up to 43°C (109°F) at 50% duty cycle |
| Character height: 1mm to markable area | Laser head weight: 5kg |
| Logos, images, 1D and 2D barcodes | Controller weight: 21kg |
| Choose from 11 laser fonts and multiple real fonts | Pipe length: 3 meters |
Logo area and focal length of standard lens (mm, standard type): 100x100/fd 162 Positioning LED (wavelength 635nm) | Power supply: 115-240V, with automatic switching: frequency 50/60Hz |
| Depends on message size and complexity, and logo surface properties | Wavelength: 1.06um |
| Dust/moisture-proof grade: TP44 | |
| No factory compressed air cooling required | |
| Humidity: 10% to 95%, non-condensing | |
| Power consumption: 3A, 350VA | |
| Laser head: Stainless steel and anodized aluminum | |
| Controller: stainless steel |
Extended coder life-time by 30%
Up to 99.9% availability ratio with easy integration
Laser head benefits from an IP55 dust/humidity protection rating as standard 7-inch remote touch screen
Operates up to 45°C (113°F) due to head and controller optimized cooling flows; no plant air is required for cooling
Change of scan head module in 10 minutes without alignments
Pointing diode and integrated laser power meter option facilitate diagnostics
Production line speed up to 250 m/min
Marking speed up to 1800 characters/s
Coding on stationary or moving products
Character height from 1mm to 100mm
Laser tube power 30 W sealed CO2
