How To Change The Print Head of The Maken X40 Thermal Transfer Overprinter

1.      Turn off power and disconnect:

Turn off the printer and disconnect it from the power supply to ensure safety during the replacement process.

2, Open the printer cover:

Open the printer cover to access the print head.      This usually involves releasing the latch or unscrewing the cover plate.

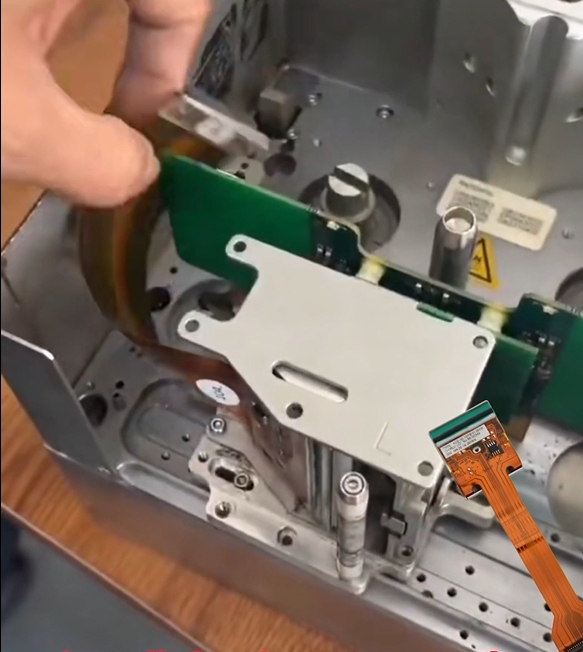

3.      Remove old print heads:

Find the print head component inside the printer.

Disconnect all cables or connectors connected to the print head.      These are usually ribbon cables or connectors that need to be carefully removed.

Use a suitable screwdriver to remove any screws or fasteners that secure the print head.

Gently remove the old print head from the mounting bracket.

4.      Install a new print head:

Remove the new print head from the packaging, carefully grasp the edges or wear gloves to avoid contamination.

Align the new print head with the mounting bracket and secure it in place with screws or fasteners.

Reconnect the cables or connectors to the new print head, ensuring they are securely connected.

5.    Check alignment and connection:

Carefully check if the print head is properly aligned and securely installed.

Ensure that all electrical connections are tight and correctly seated.

6.    Close the printer cover:

After installing and connecting the new print head, close the printer cover and secure it.

7.   Power on and test:

Reconnect the printer to the power and turn it on.   Run test printing to ensure that the new print head runs properly and produces high-quality printing.
