Differences between Videojet 6530 and 6330 thermal transfer overprinter

Views: 4     Author: Site Editor     Publish Time: 2022-09-22      Origin: Site

Videojet 6530 and videojet 6330 are Videojet DataFlex. Two new products in the TTO series are designed to help you improve your production and operation efficiency. These new types of coding machines of Videojet adopt innovative technology to further extend the normal operation time of the coding machine, while reducing quality inspection time, waste and rework, so as to improve the output, quality and efficiency.


6530 and 6330 use the iAssureTM built-in coding quality checker, so there are fewer vulnerable parts and fully electronic operation, can quickly replace the ribbon box, providing the advantage of extending the normal operation time of the printer as much as possible.

6530

Videojet 6330 is a medium speed thermal transfer printer with a printing speed of 250 packets/minute . Two printing widths, 32mm and 53mm, are provided to achieve a better combination of print head and ribbon width, thus providing cost-effective solutions for your applications.

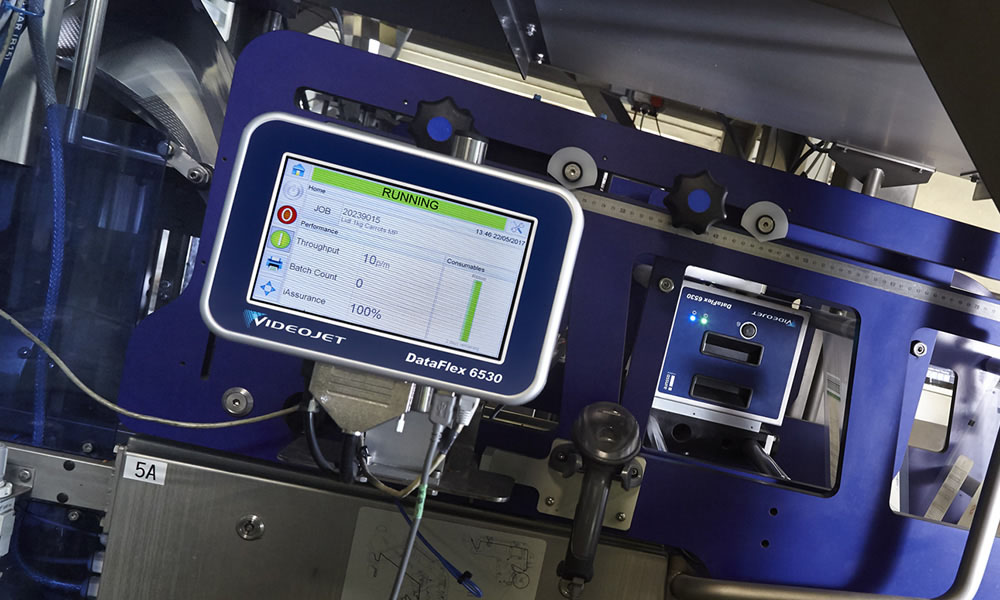

Videojet 6530 is a high-speed thermal transfer printer, which can extend the normal operation time of the printer, reduce quality inspection time, waste and rework, and improve production and operation efficiency. Two plot widths are available, 53 mm and 107 mm to meet your specific application needs.The 6530 is designed for applications such as vertical forming, filling and sealing, with a printing speed of 1000mm/s and a production efficiency of 700 packets/min


Specifications 6530 6330
Printer Mode Intermittent and continuous movement Intermittent and continuous movement
Print spacing Consistent 0.5 mm (0.02 in) Consistent 0.5 mm (0.02 in)
Color band width

6530 (53mm): 20 mm (0.8 in) maximum 55 mm

                        (2.2 in)


6530 (107mm): 55 mm (2.2 in) maximum 110mm                                  (4.33 in)

6330 (53mm) : 20 mm (0.8 in) maximum 55mm (2.2 in)


6330 (32mm) : 20 mm (0.8 in) maximum 33mm (1.3 in)

Continuous mode:
Maximum print area (width × Length)

6530 (53mm): 53 mm (2.1 inches) wide x 200                              mm (7.9 inches) long


6530 (107mm): 107 mm (4.3 inches) wide x 300                           mm (11.8 inches) long

6330 (53mm): 53 mm (2.1 inches) wide x 200

                        mm (7.9 inches) long


6330 (32mm) : 32mm (1.3in) wide x 200

                          mm (7.9in) long

Maximum print speed

6530 (53mm): 1000 mm/s (39.4 in/s)


6530 (107mm): 1000 mm/s (39.4 in/s)

6330 (53mm): 750 mm/s (29.5 in/s)


6330 (32mm): 750 mm/s (29.5 in/s)

Intermittent mode:
Maximum print area (width × Length)

6530 (53mm): 53 mm (2.1 inches) wide x 75                                 mm (2.95 inches) long


6530 (107mm): 107 mm (4.3 inches) wide x 75                              mm (2.95 inches) long

6330 (53mm): 53 mm (2.1 inches) wide x 75 mm

                        (2.95 inches) long


6330 (32mm):  32mm (1.3in) wide x 75mm

                         (2.95 in) long

Maximum print speed

6530 (53mm): 800 mm/s (31.5 in/s)


6530 (107mm): 600 mm/s (23.6 in/s)

6330 (53mm): 750 mm/s (29.5 in/s)


6330 (32mm): 750 mm/s (29.5 in/s)
