Comparison Between UC-X5 And Domestic And Foreign TTO Printer

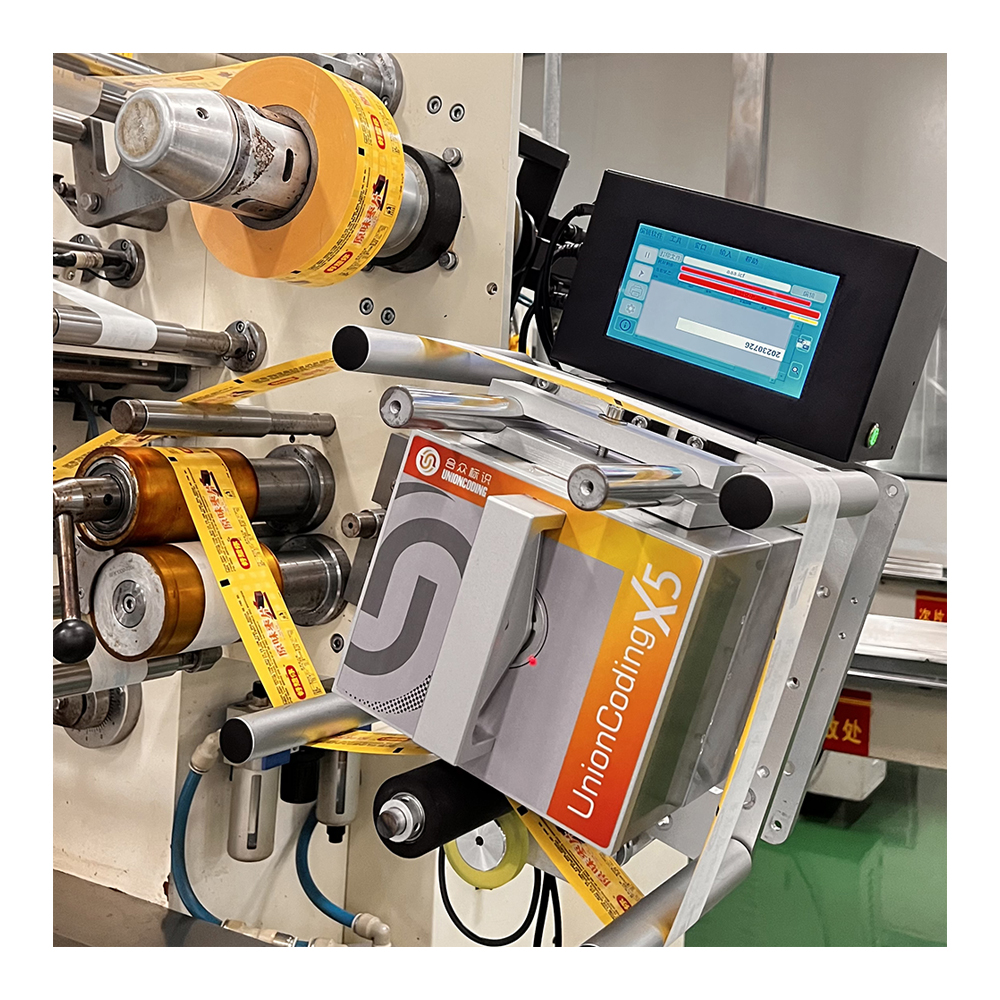

UNIONCODING-X5 intelligent print head drive technology does not require compressed air, has faster response, higher frequency, more stability, and consistent printing quality. It can increase the life of the print head to a large extent and prevent operators from over-adjusting air pressure and solenoid valves. UC-X5 has built-in editing software that can change the printing content. The ribbon and print head are automatically recognized and adjusted automatically, no manual adjustment is required, and printing can be done immediately after turning on the machine.

Many-to-many control: One controller can control multiple coding machines, and one coding machine can be controlled by multiple controllers, with no limit on the number.

The service life of a non-air source machine is about three times that of a cylinder model, and the normal service life is about 10 years.

Advantages of UC-X5 printer:

Cpu: multi-core, 1GHZ Memory: greater than 1GB Storage: 512MB Maximum data rate: 800MHZ

Controller: Quad-core, greater than 1.2GHZ Memory: greater than 1GB Storage: greater than 8GB

Domestic cylinder printer:

Cpu: Microcontroller, 300MHZ Memory: 32MB Storage: 32MB Maximum data rate: 133MHZ

Controller: Microcontroller, 300MHZ Memory: 32MB Storage: 32MB

The printing frequency is an important indicator of leakage prevention. The domestic cylinder model has a printing frequency of 370 times, and the UC-X5 has a printing frequency of 450 times.

DK uses a cylinder to press down on the print head. The faster the packaging speed is, the faster the print head is pressed down. This causes friction and heat, which accelerates the aging of the solenoid valve and cylinder, resulting in air leakage and defective print quality. There is no editing software on the controller and printing content needs to be imported through a USB flash drive.

The UC-X5 pure motor presses down the print head at exactly the same height, increasing the life of the print head. It has fast response speed, high frequency, and eliminates missed prints.

Markem-Imaje: Single-core processor <600MHZ Maximum data rate: 133MHZ Memory 64M Storage: 64M

Videojet: Single-core processor <600MHZ Maximum data rate: 133MHZ Memory 64M Storage: 64M

6330 no air source structure: 0.8GHZ

Cylinder machine calibration:

After other new domestic machines are installed, the motherboard is replaced, a new ribbon is replaced, or the ribbon is broken or wrinkled, and calibration will be performed. Machine calibration requires removing the ribbon cartridge and manually operating the print head position.

UC-X5: direct automatic positioning and initialization without manual operation.

How to debug a new DK coding machine

Remove the ribbon cartridge, click on the menu, enter the administrator password (8888), adjust it to portrait orientation according to intermittent or continuous operation, system diagnosis, print head offset, adjust the value to 70 first, then click the print head to probe out, and print When the head presses down, check whether it is at the highest point of the rubber roller. Before confirming the highest point, do the offset value several times until it is adjusted to the appropriate position. The print head is at the highest point of the rubber roller, and then enter the management Member, adjust the length to 90 degrees.

UC-X5: After the machine is installed, it will automatically position and print directly after powering on, without the need to manually adjust the print head position.

DK settings: Horizontal is the width of the print head,

Gap: print file interval

Delay: complex algorithm

Preview inversion: image rotated 180°

Controller response is slow

To modify the system time, open the administrator, modify the time, and confirm by repeatedly electric shock, which is troublesome.

Requires oil-water separation tube

DK has a one-year warranty, but the print head has no warranty. The replacement cost of the cylinder solenoid valve is high and it basically needs to be replaced every one or two years.

Card ribbon spool, replace once a year, about 1,000 each time

The printing position range is too large and the position is unstable.
