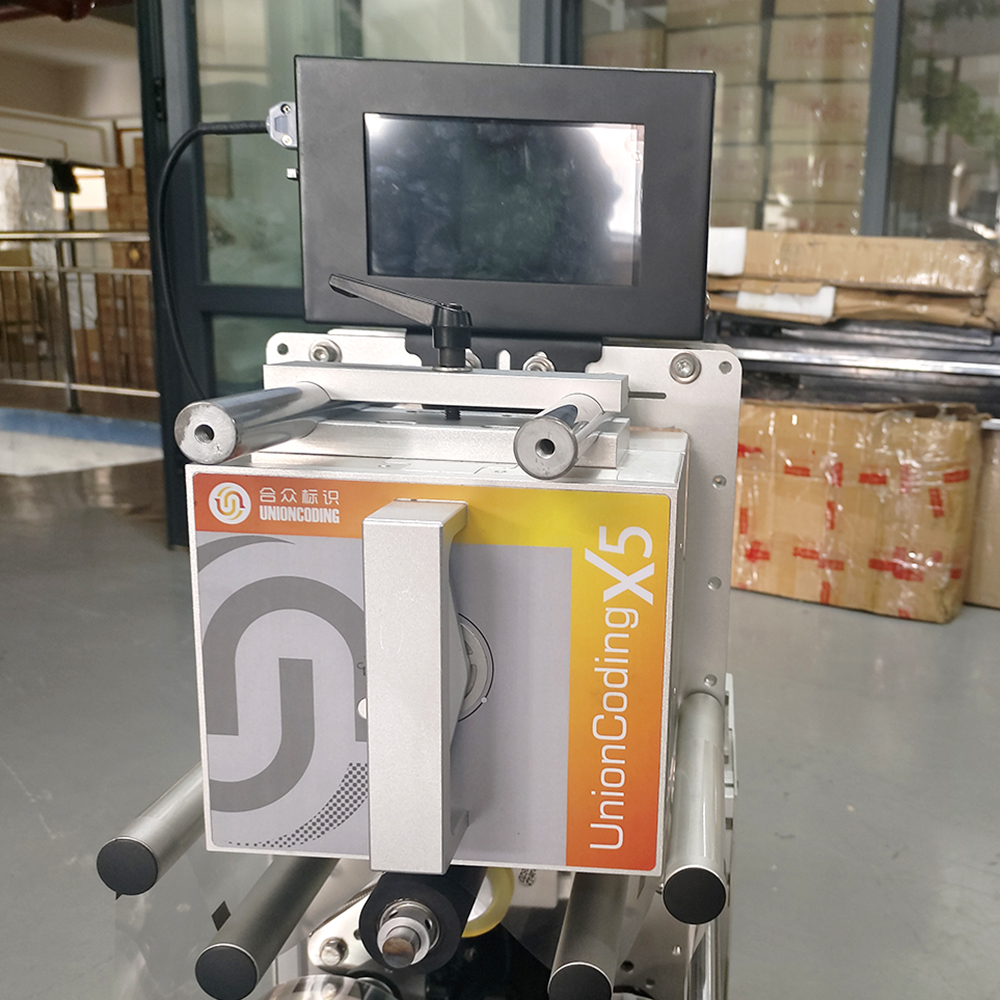

UNIONCODING-X5 Air Sourceless Thermal Transfer Overprinter

As the market changes, customer demands and regulations change, thermal transfer overprinters (TTO)

It can be used with various packaging equipment such as pillow packaging machines, vertical packaging machines, labeling machines, bag making machines, rewinding machines, paging machines, modified atmosphere packaging machines, vacuum packaging machines, etc.

UNIONCODING-X5 Excellent experience:

Intelligent drive intelligent print head drive technology does not require compressed air, has faster response, higher frequency, more stability, consistent printing quality, and increased print head life.

Prevent operators from over-adjusting air pressure and solenoid valves.

The ribbon and print head are automatically recognized and adjusted, no manual calibration is required, and printing can be done immediately after turning on the machine.

The print head is automatically positioned to the position of the rubber roller, eliminating the need to manually adjust the print head pressure, position, etc.

One-item-one-code support without external weight software.

Built-in 1.0GHZ main frequency CPU, it runs faster and more stably, and the interface operation is responsive.

Powerful database storage capacity, 512MB storage for printing.

The controller has 8GB storage and built-in editing software, which can change the printing content.

Intuitive user interface, real-time monitoring of ribbon status and printing progress.

UNIONCODING-X5 is permanently reliable:

Pure metal parts, no wearing parts inside the machine

Super long warranty: three years for the whole machine and half a year for the print head

High performance indicators:

The fastest 450 packages can be printed per minute, free ICode editing software

Many-to-many control:

One controller can control countless coding machines, and one coding machine can be controlled by countless controllers.

Printing speed: Intermittent mode: 100-500mm/s Continuous mode: 50-600mm/s

Printing area: Intermittent mode: 32/53mm*75mm

Continuous mode: 32/53mm*300mm

Printing function: real-time date, count, ingredient list, nutritional ingredient list, picture LOGO, form, barcode, QR code, dynamic data, UDI code, etc.

Print communication: Gigabit Ethernet, WIFI, USB, serial port

Controller: Gigabit Ethernet, WIFI, Bluetooth, USB

UNIONCODING-X5 is widely used in food, medicine, seeds, veterinary drugs, pesticides, feed, fertilizers, milk powder, paper towels and other industries for large text coding, QR codes and barcodes and the printing of dynamic data.
