UC-X3

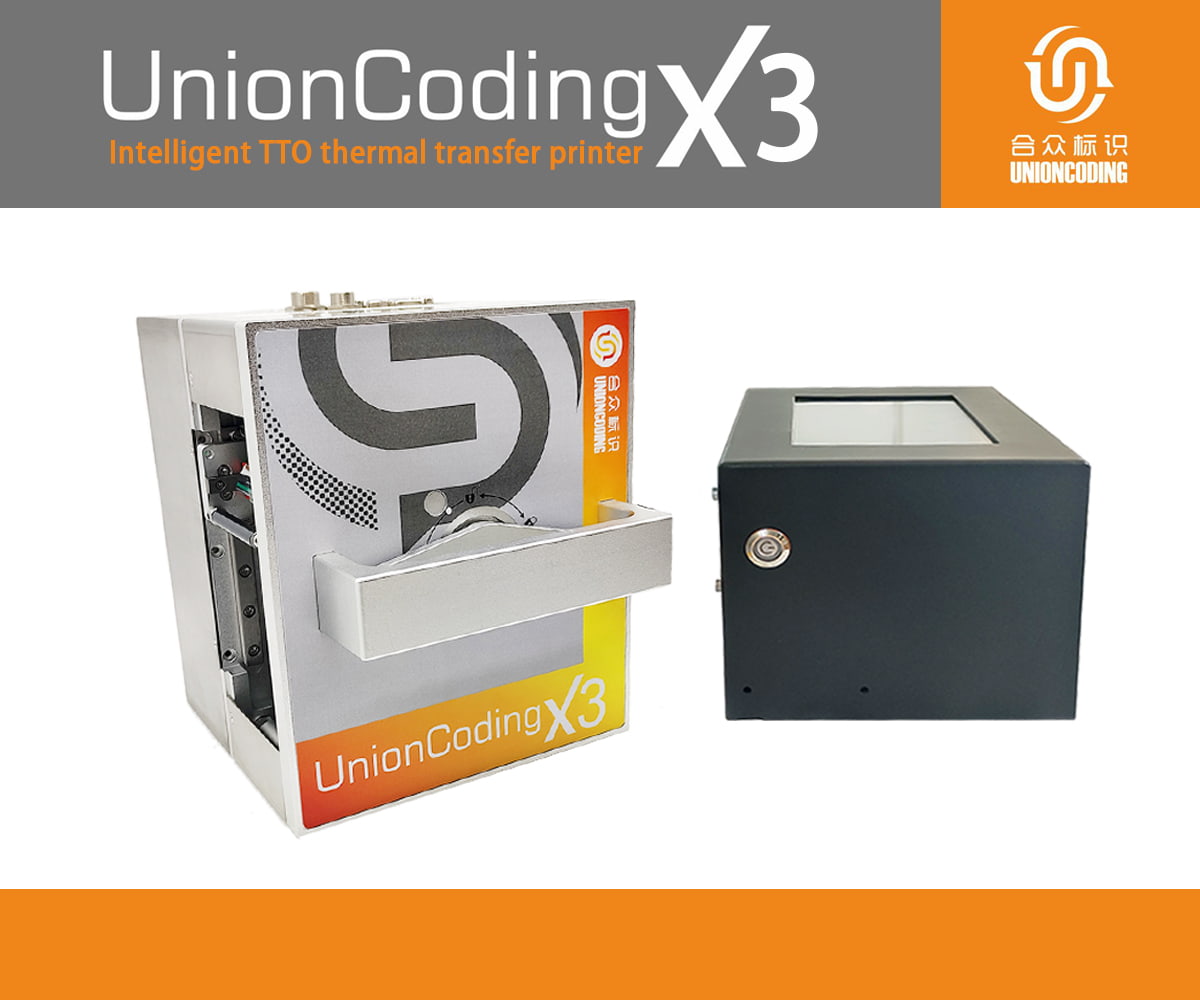

UC-X3 Thermal Transfer Coding Machine for Flexible Packaging
The UC-X3 thermal transfer overprinter (TTO) is designed for high-speed, high-resolution coding on flexible packaging. It is widely used for printing date codes, batch numbers, barcodes, and variable data on films, labels, and pouches.
With stable performance and easy integration, the UC-X3 TTO printer is an ideal solution for food, pharmaceutical, and industrial packaging lines.

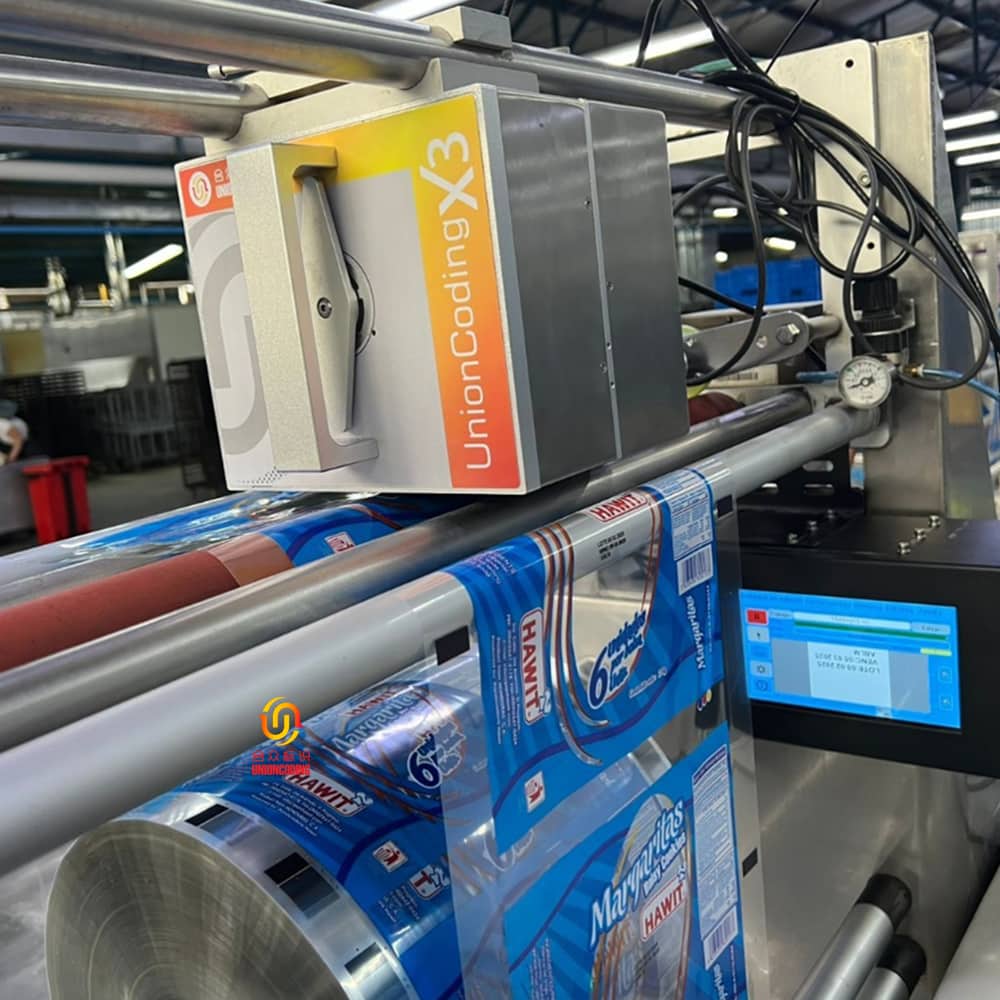

UC-X3 Industrial Thermal Transfer Overprinter (TTO) – Precision Coding for High-Speed Production Lines
The UC-X3 is designed for manufacturers who demand reliability. Whether you are coding expiration dates on snack bags or batch numbers on pharmaceutical foils
| Model | UNIONCODING-X3 |
| Print mode | Continuous & intermittent thermal transfer printing |
| Maximum printing width | 53mm (standard with 53mm print head); 32mm (optional with 32mm print head) |
| Print area | Intermittent mode: 53mm*75mm/32mm*75mm, Continuous mode: 53mm*300mm/32mm*300mm |
| Resolution | 300dpi |
| Printing speed | Continuous mode: 50-600mm/s; Intermittent mode: 100-500mm/s |
| Print gap | 0.5mm |
| Types of flexible packaging materials | PET, PE, OPP, BOPP, CPP, PA and other films and composite films |
| Ribbon width | 20mm-55mm |
| Ribbon type | Resin base/mixed base |
| Ribbon length | Maximum length: 800 meters |
| Printingfunction | Realtime date, Counting, Ingredientlist, Nutritional composition list, Picture LOGO, Form, Barcode, QRcode, Dynamic data,UDl code, etc |
Food & Beverage: Perfect for printing expiry dates on potato chip bags, candy wrappers, and frozen food packaging.
Pharmaceuticals: Ensures compliant batch coding on blister packs and medicine pouches.
Cosmetics: High-quality branding and date coding on shampoo sachets and cosmetic tubes.

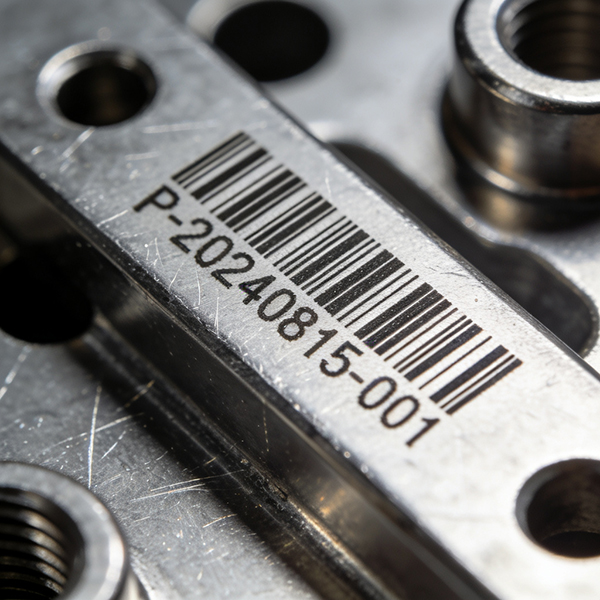

Industrial Parts: Marking cables, wires, and flexible industrial components.
Electronic components

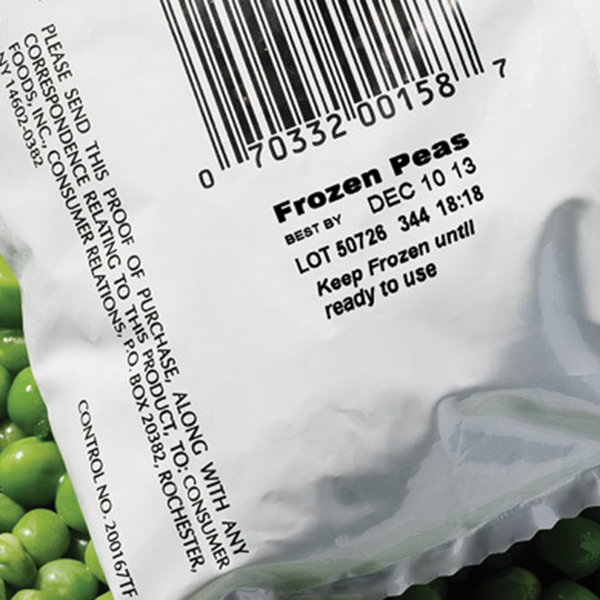

Vegetables

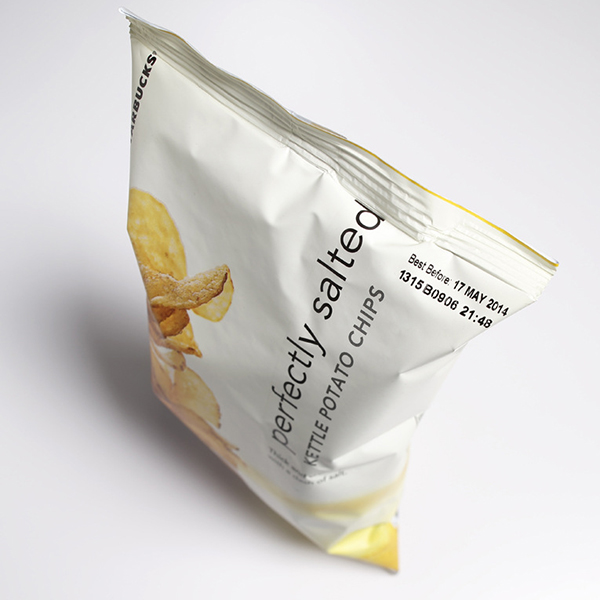

Potato chips
Beverages
Why Choose the UC-X3 for Your Packaging Line?
Intelligent print head drive technology without compressed air, faster response, higher frequency, more stable ,consistent printing quality, Can greatly increase print head life and avoid operator over-adjustment of air pressure and solenoid valves.
FAQ
1. What is the UC-X3 thermal transfer printer used for?
The UC-X3 thermal transfer overprinter is used for printing variable information on flexible packaging, such as production dates, batch numbers, barcodes, QR codes, and logos.
2. What packaging machines can the UC-X3 work with?

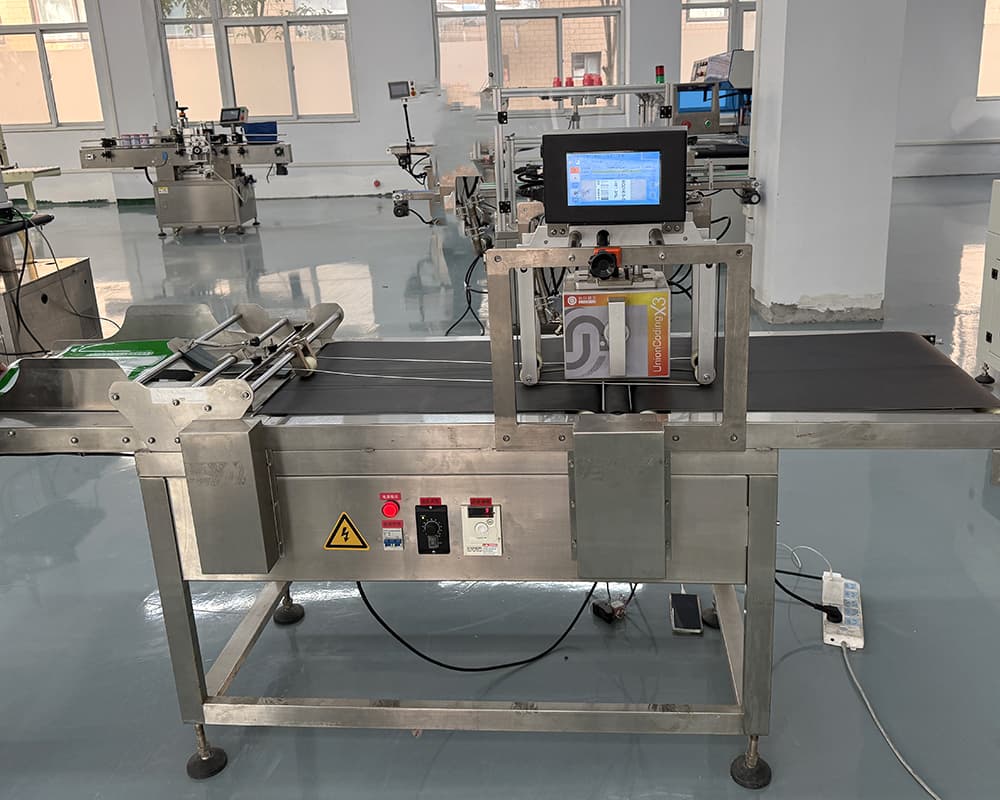

The UC-X3 TTO printer can be integrated with horizontal flow wrapping machines, vertical packaging machines (VFFS), labeling machines, and paging machines.
3. What materials can the UC-X3 printer print on?
The printer supports various flexible packaging materials, including plastic film, laminated film, aluminum foil, labels, and pouches.
4. What ribbon sizes are compatible with UC-X3?
The UC-X3 printer is compatible with standard TTO ribbons such as 33×450m, 33×600m, 55×600m, and 55×1000m.
5. Is the UC-X3 printer easy to install?
Yes. The UC-X3 thermal transfer printer is designed for easy installation. We also provide installation videos and technical support to help customers set up quickly.
6. What industries use the UC-X3 thermal transfer printer?
UC-X3 printers are widely used in food packaging, pharmaceuticals, cosmetics, daily chemicals, and industrial packaging.
7. Do you provide after-sales support for the UC-X3 printer?
Yes. We provide professional technical support, spare parts supply, and online installation guidance to ensure stable printer operation.
